Inspection Procedure

1. Check the DATA LIST to ensure proper function of the door unlock detection switch.

   BODY:

   DATA LIST



   Tester Display	Measurement Item/Range	Normal Condition
   Key Unlock Warning SW	Unlock warning switch signal /ON or OFF	ON: Key is in ignition key cylinder OFF: No key is in ignition key cylinder

   OK:

   The display is as specified in the normal condition.

NG: GO TO STEP 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

1. Remove the unlock warning switch assembly.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Condition	Specified Condition
   1-2	Free	10 kΩ or higher
   1-2	Pushed	Below 1 Ω

Fig 1: Identifying Unlock Warning Switch Assembly Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE UNLOCK WARNING SWITCH ASSEMBLY

OK: Go to next step

1. Disconnect the K4 unlock warning switch assembly connector.
2. Disconnect the B6 driver side J/B connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Condition	Specified Condition
   K4-2 - B6-21 (KSW)	Always	Below 1 Ω
   K4-1 - Body ground	Always	Below 1 Ω

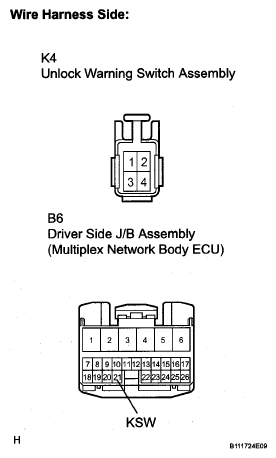

Fig 2: Identifying B6 Driver Side J/B Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
