Television Display Power Source Circuit: Wiring Diagram

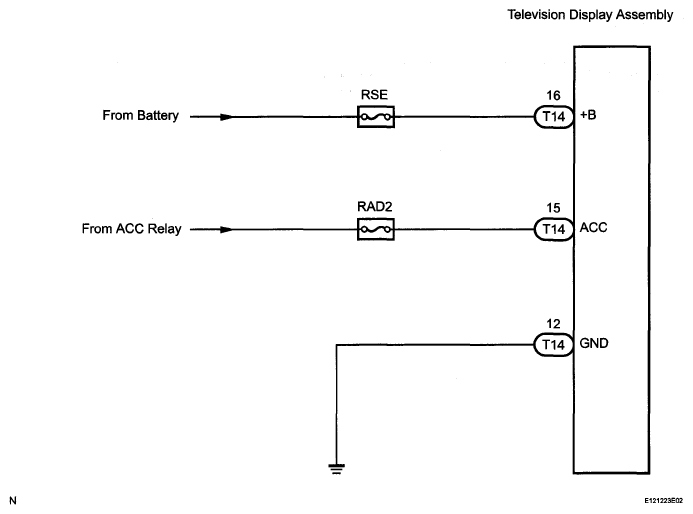

Fig 1: Television Display Power Source Circuit - Wiring Diagram

G05141124

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
