Rear Combination Light Assembly: Components

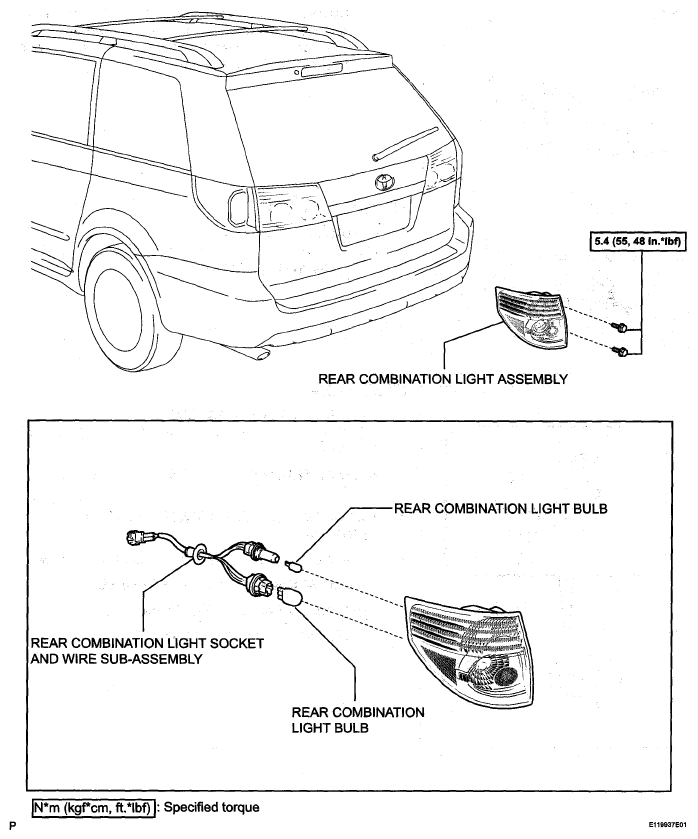

Fig 1: Rear Combination Light Assembly Replacement Components With Torque Specifications

G05140808

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
