Headlight Assembly: Components

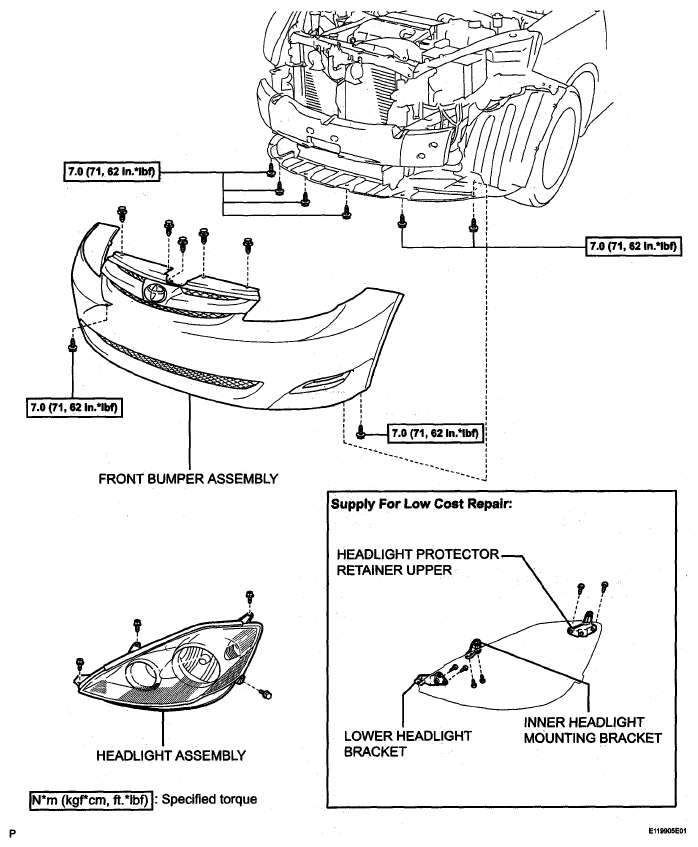

Fig 1: Headlight Assembly Replacement Components With Torque Specifications (1 Of 3)
G05140759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

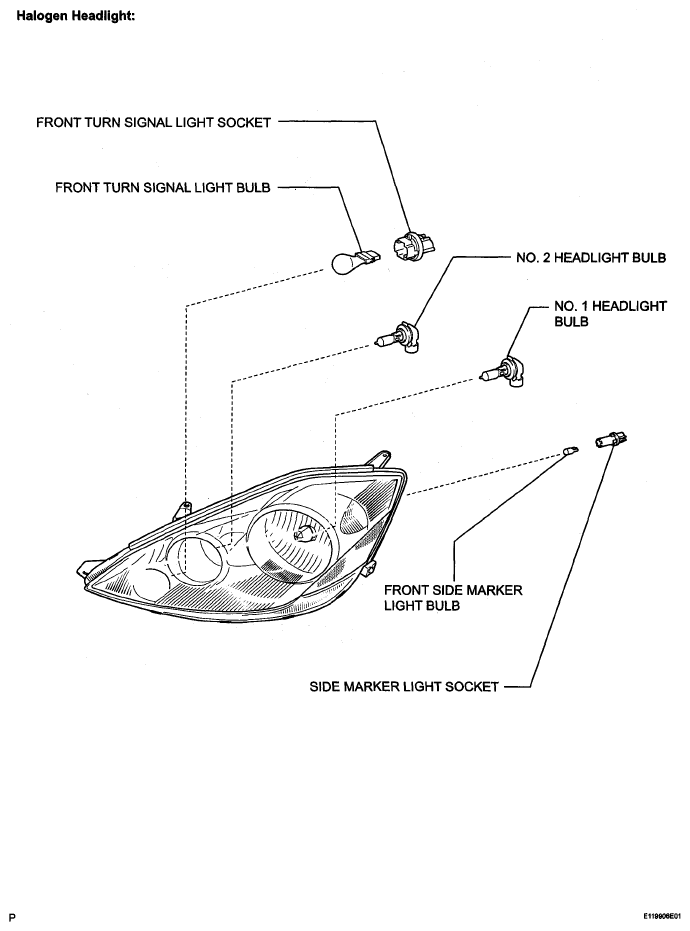

Fig 2: Identifying Headlight Assembly Components (2 Of 3)
G05140760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

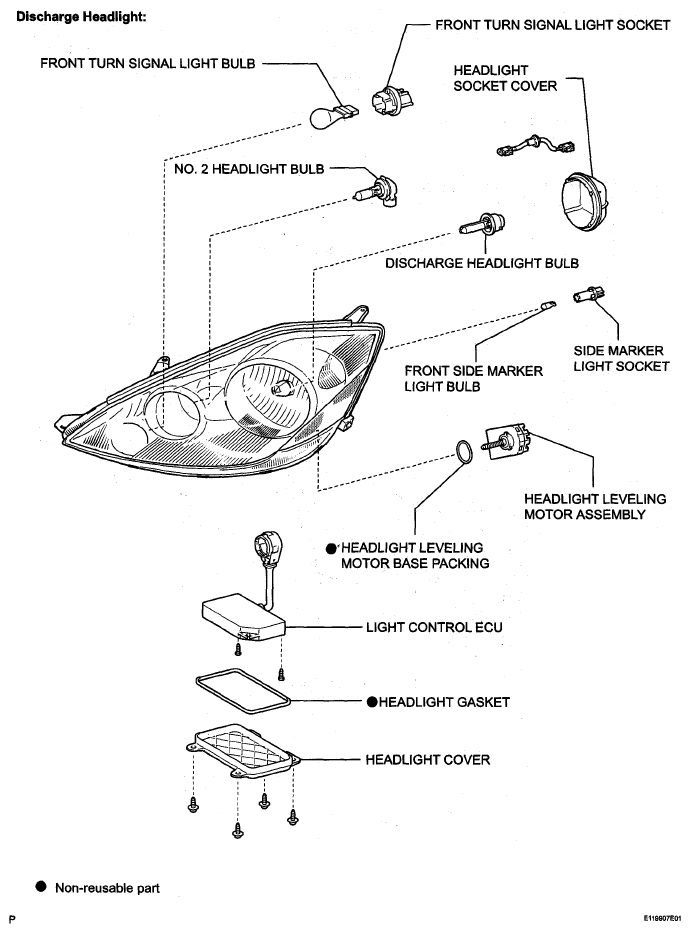

Fig 3: Identifying Headlight Assembly Components (3 Of 3)
G05140761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
