Fog Light Assembly: Installation

  1. INSTALL FOG LIGHT ASSEMBLY
    1. Install the fog light assembly with the 2 claws and 2 pins.

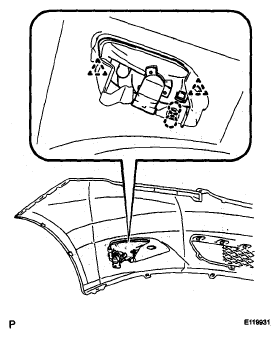

      2. Fig 1: Identifying Fog Light Assembly With Claws And Pins
      G05140799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT BUMPER ASSEMBLY (See  INSTALLATION  )
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  4. VEHICLE PREPARATION FOR FOG LIGHT AIMING
  5. PREPARATION FOR FOG LIGHT AIMING
  6. FOG LIGHT AIMING INSPECTION
  7. FOG LIGHT AIMING ADJUSTMENT
