Fog Light Assembly: Components

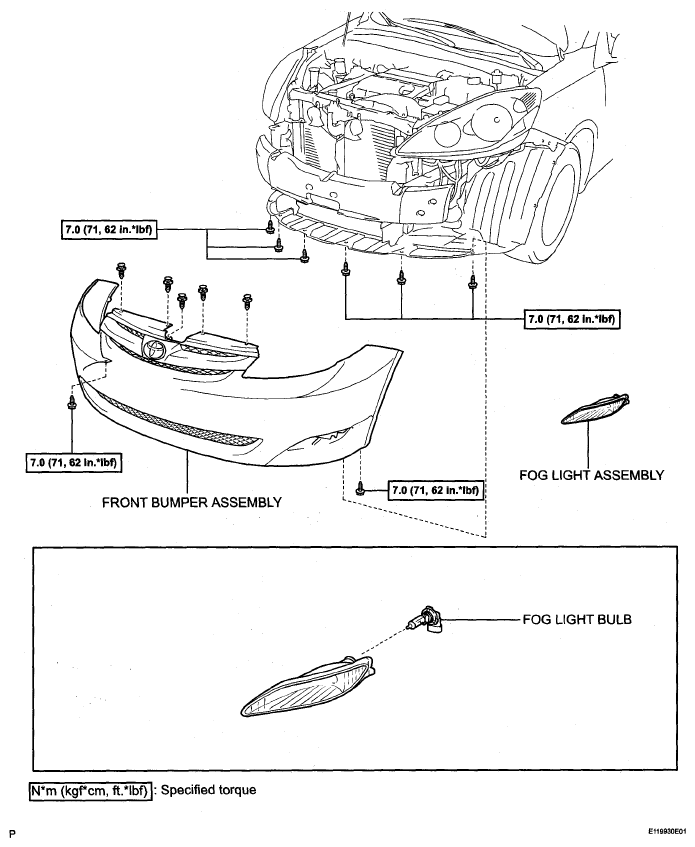

Fig 1: Fog Light Assembly Replacement Components With Torque Specifications

G05140798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
