Back-Up Light Assembly: Components

Fig 1: Identifying Back-Up Light Assembly Components (1 Of 2)
G05140813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

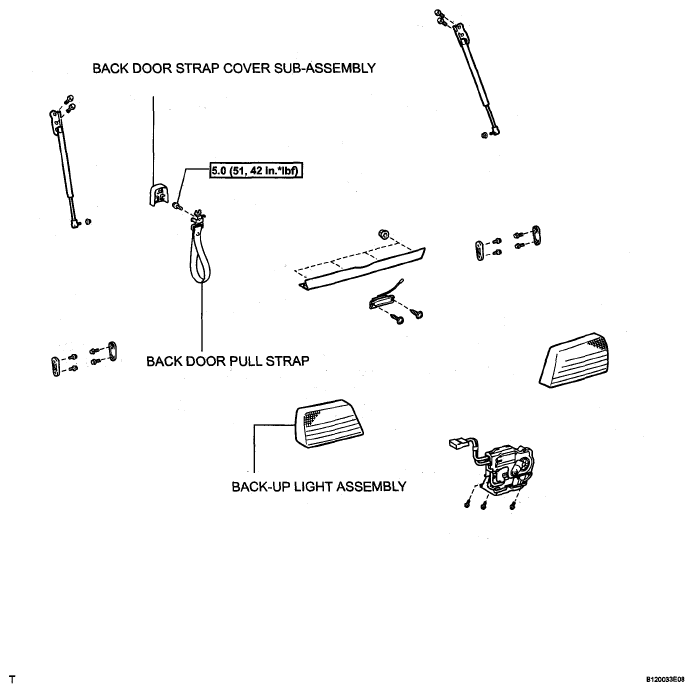

Fig 2: Back-Up Light Assembly Replacement Components With Torque Specifications (2 Of 2)
G05140814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
