Inspection Procedure

1. Drive the vehicle and check if the function of the speedometer on the combination meter is normal.

   OK: Actual vehicle speed and the speed indicated on the speedometer are the same.

   HINT:

   the vehicle speed sensor is functioning normally when the indication on the speedometer is normal.

NG:  GO TO METER / GAUGE SYSTEM

OK: Go to Next Step

1. Disconnect the radio receiver connector.
Fig 1: Identifying Radio Receiver Connector Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage.
   1. Jack up either one of the drive wheels.
   2. Move the shift lever to the neutral position.
   3. Turn the ignition switch to the ON position.

      *1: 6 Speaker without Rear Seat Entertainment System.

      *2: 6 Speaker with Rear Seat Entertainment System.

   4. Measure the voltage between terminal SPD of the radio receiver and body ground when the drive wheels are turned slowly.

      OK: Voltage pulses as shown in the illustration.

NG: REPLACE RADIO RECEIVER

Fig 2: Radio Receiver Voltage Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to Next Step

1. Disconnect the combination meter connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   SPD - C10-36	Ignition switch OFF	Below 1 Ω

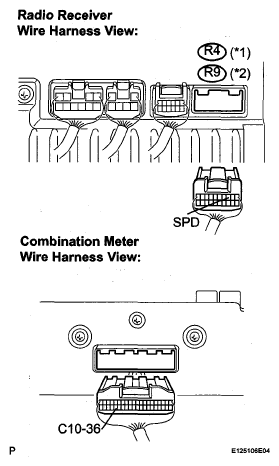

   Fig 3: Identifying Combination Meter And Radio Receiver Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1: 6 Speaker without Rear Seat Entertainment System.

   *2: 6 Speaker with Rear Seat Entertainment System.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   SPD - Body ground	Ignition switch OFF	10 kΩ or higher

   HINT:

   If the resistance between terminal SPD and body ground is less than 10 kΩ, there may be a short in a wire harness, connector, or an ECU that is connected to the SPD signal wire.

   *1: 6 Speaker without Rear Seat Entertainment System.

   *2: 6 Speaker with Rear Seat Entertainment System.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU

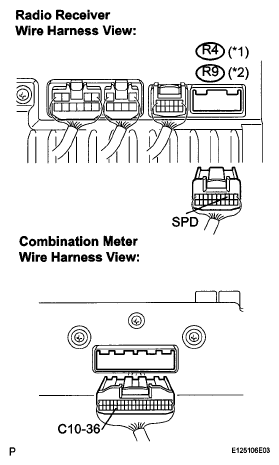

Fig 4: Identifying Combination Meter And Radio Receiver Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE COMBINATION METER
