Inspection Procedure

1. Remove the BRK relay from the Relay Block No. 6.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   1 - 2	Below 1 Ω
   3 - 4	Below 1 Ω
   3 - 5	10 kΩ or higher

3. Apply battery voltage between terminals 1 and 2.
4. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   3 - 5	Below 1 Ω

   Fig 1: Identifying BRK Relay

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE BRK RELAY

OK: Go to Next Step

1. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   VOLTAGE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   5 - Body ground	Always	10 to 14 V
   1 - Body ground	Ignition switch on	10 to 14 V
   1 - Body ground	Ignition switch off	Below 1 V

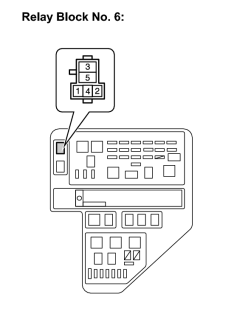

Fig 2: Relay Block No. 6
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Disconnect the skid control ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   4 - S3-21 (STP2)	Always	Below 1 Ω
   4 - Body ground	Always	10 kΩ or higher
   3 - S3-27 (STP1)	Always	Below 1 Ω
   3 - Body ground	Always	10 kΩ or higher
   2 - S3-16 (STP0)	Always	Below 1 Ω
   2 - Body ground	Always	10 kΩ or higher

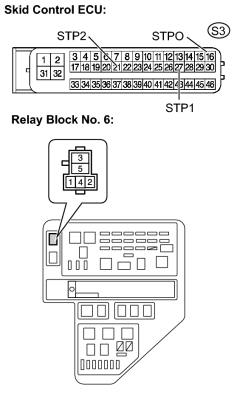

   Fig 3: Skid Control ECU and Relay Block No. 6

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 4: Identifying S3 Skid Control ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE BRAKE ACTUATOR ASSEMBLY  (See REMOVAL )
