Vane Pump: Installation

  1. INSTALL VANE PUMP ASSEMBLY
    1. Temporarily install the bolt to the vane pump assembly.
    2. Install the vane pump assembly.
      Fig 1: Identifying Vane Pump Assembly Bolt
      G04978718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Temporarily install the bolt (B).
    4. Using SST, tighten the 2 bolts.

      SST 09249-63010

      Torque: Without SST

      43 N*m (439 kgf*cm, 32 ft.*lbf)

      With SST

      29 N*m (294 kgf*cm, 21 ft.*lbf)

      NOTE:
      • Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
      • This torque value is accurate when SST is parallel to the torque wrench.

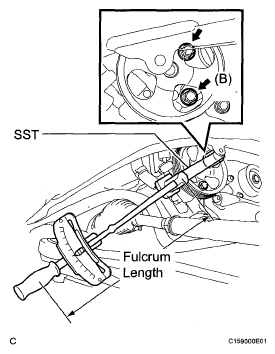

        Fig 2: Installing Bolts
        G05140417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT POWER STEERING FLUID PRESSURE SWITCH CONNECTOR
    1. Connect the connector to the power steering fluid pressure switch.
    Fig 3: Connecting Power Steering Fluid Pressure Switch Connector
    G05140378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT PRESSURE FEED TUBE ASSEMBLY
    1. Install a new gasket to the pressure feed tube assembly.
    2. Temporarily connect the pressure feed tube assembly to the vane pump assembly with the union bolt.
    3. Fully tighten the union bolt.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

      NOTE: Make sure that the stopper of the pressure feed tube assembly contacts the vane pump assembly securely as shown in the illustration.
      Fig 4: Connecting Pressure Feed Tube Assembly To Vane Pump Assembly With Union Bolt
      G05140419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT NO. 1 FLUID RESERVOIR TO PUMP HOSE
    1. Connect the No. 1 fluid reservoir to pump hose to the vane pump assembly with the clip.
      NOTE:
      • Connect the No. 1 fluid reservoir to pump hose with the paint mark facing toward the rear of the vehicle.
      • Push the No. 1 fluid reservoir to pump hose as far as it goes as shown in the illustration.
      • Install the clip at the position specified in the illustration.

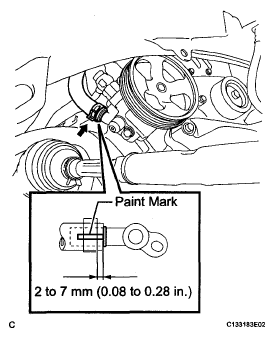

    2. Fig 5: Connecting No. 1 Fluid Reservoir To Pump Hose
      G05140420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FAN AND GENERATOR V BELT  (See INSTALLATION )
  6. ADD POWER STEERING FLUID
  7. BLEED POWER STEERING SYSTEM  (See BLEEDING  )
  8. CHECK POWER STEERING FLUID LEVEL  (See ON-VEHICLE INSPECTION  )
  9. INSPECT FOR POWER STEERING FLUID LEAK
  10. INSTALL FRONT FENDER APRON SEAL RH  (See INSTALLATION )
  11. INSTALL FRONT WHEEL RH

    Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
