Amplifier Antenna: Components

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

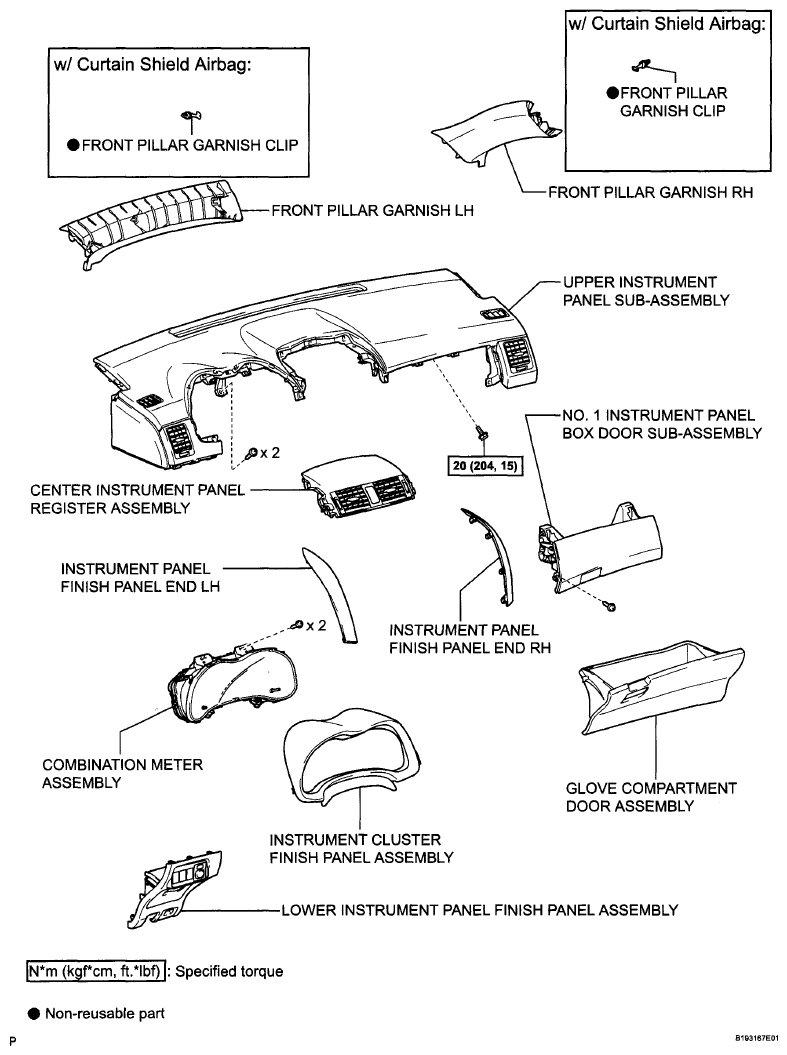

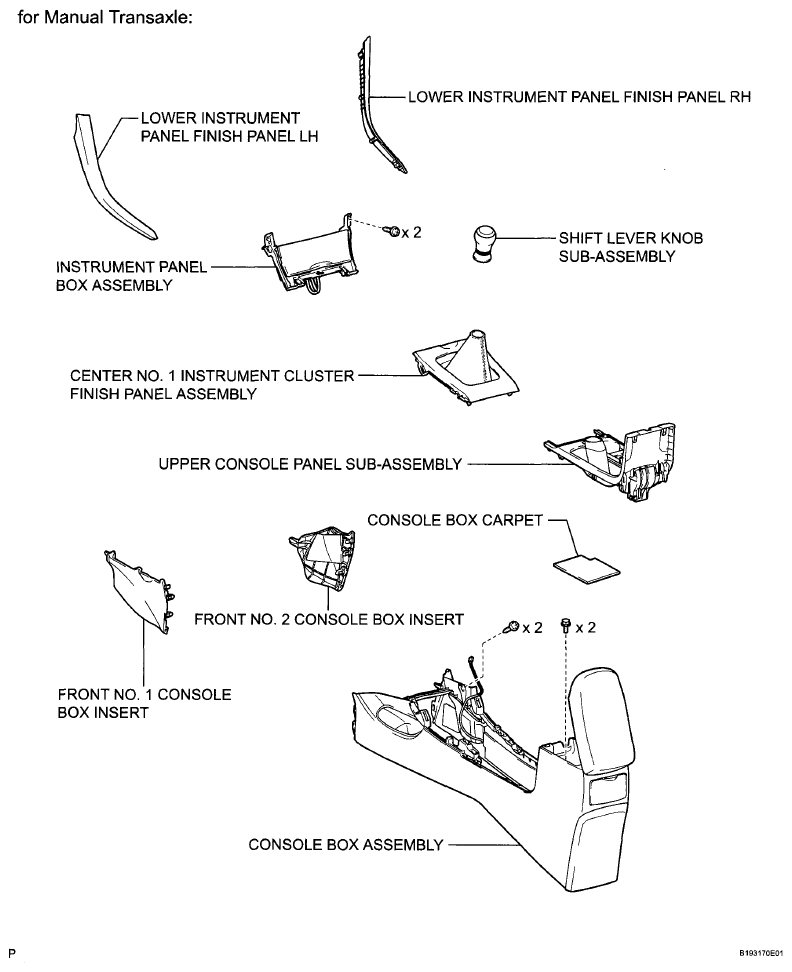

Fig 1: Radio Antenna Replacement Components With Torque Specifications (For Satellite Radio) (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

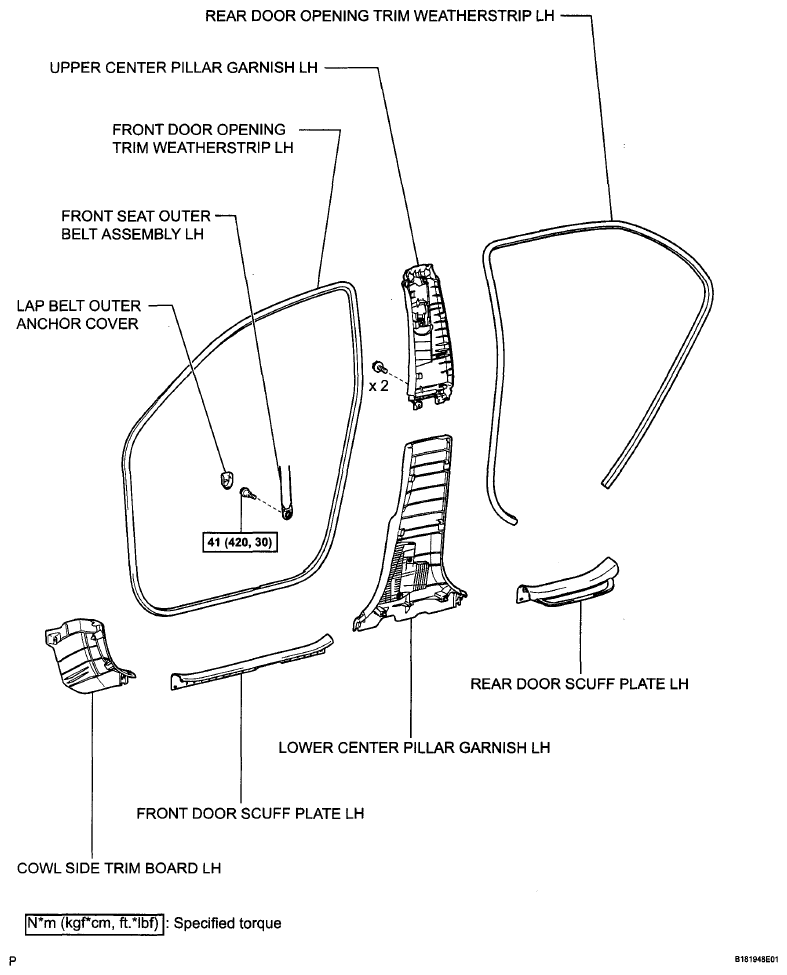

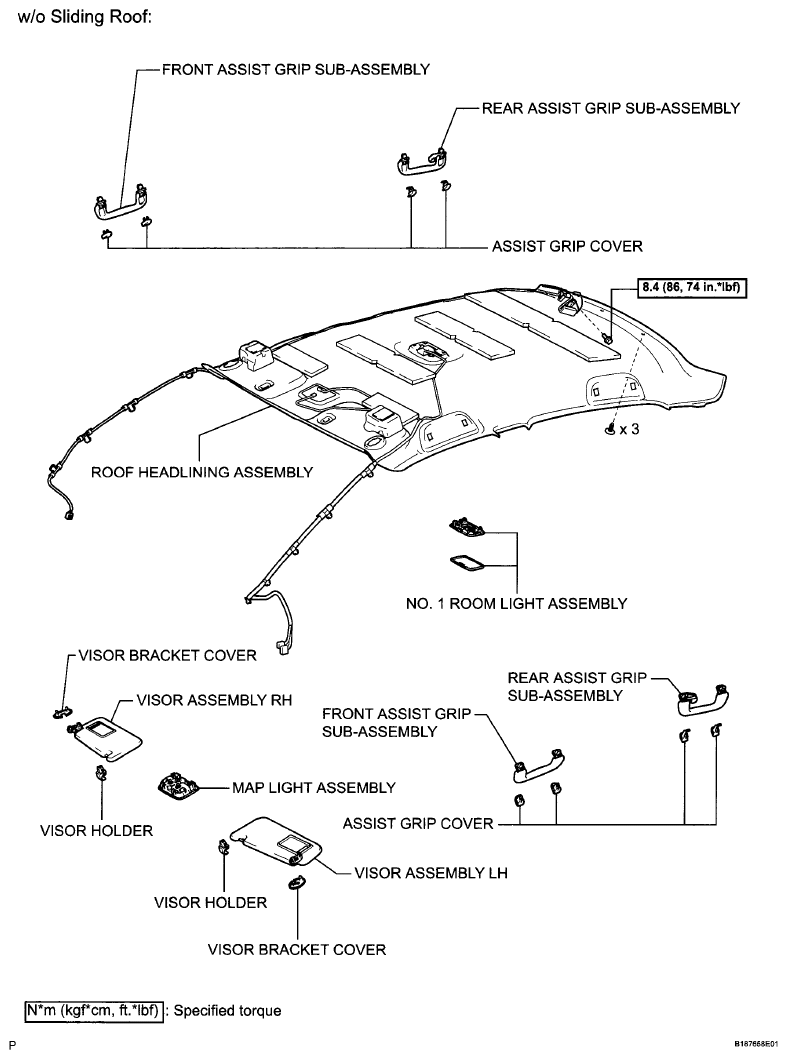

Fig 2: Radio Antenna Replacement Components With Torque Specifications (For Satellite Radio) (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

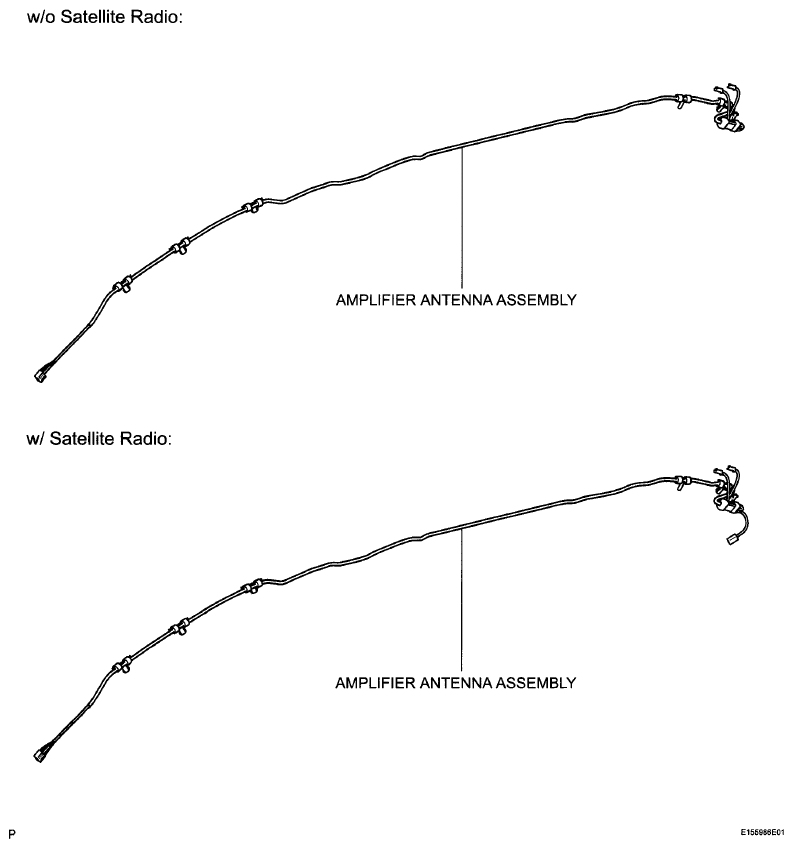

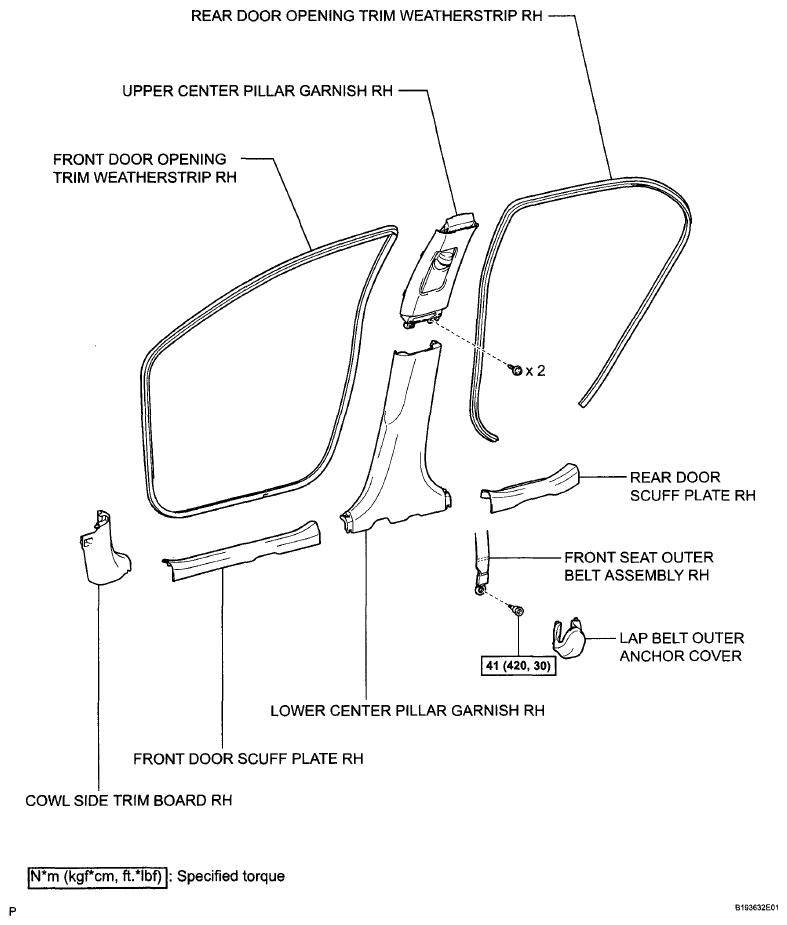

Fig 3: Radio Antenna Replacement Components With Torque Specifications (For Satellite Radio) (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

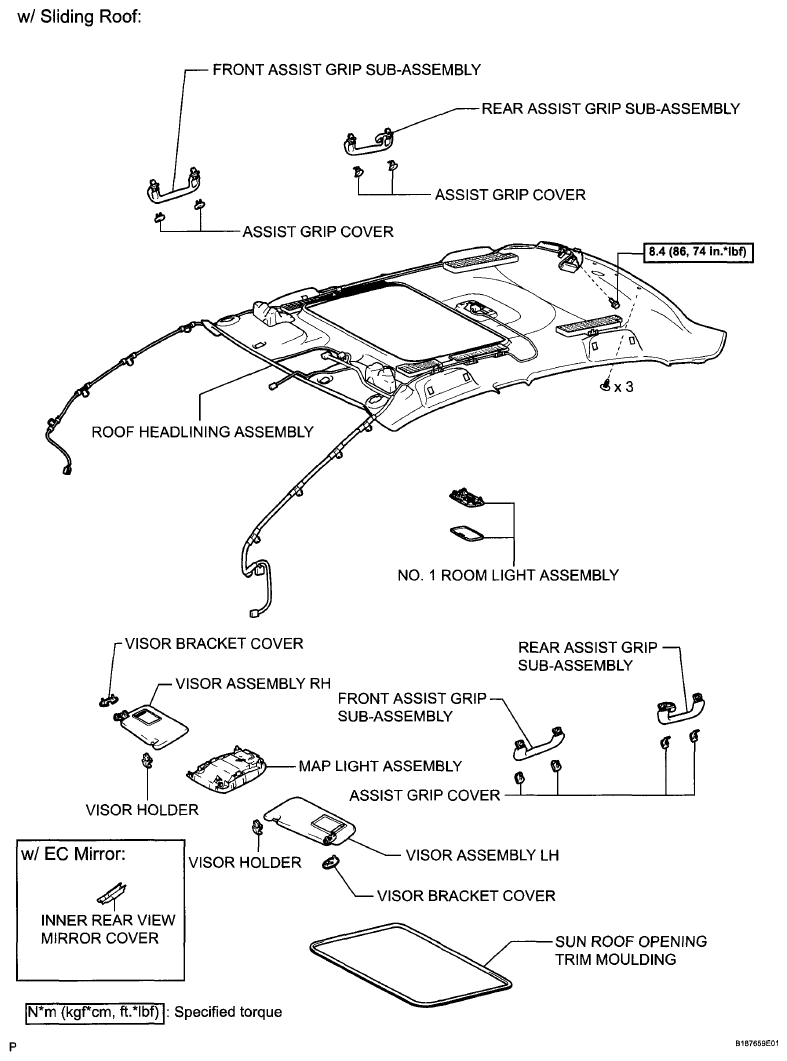

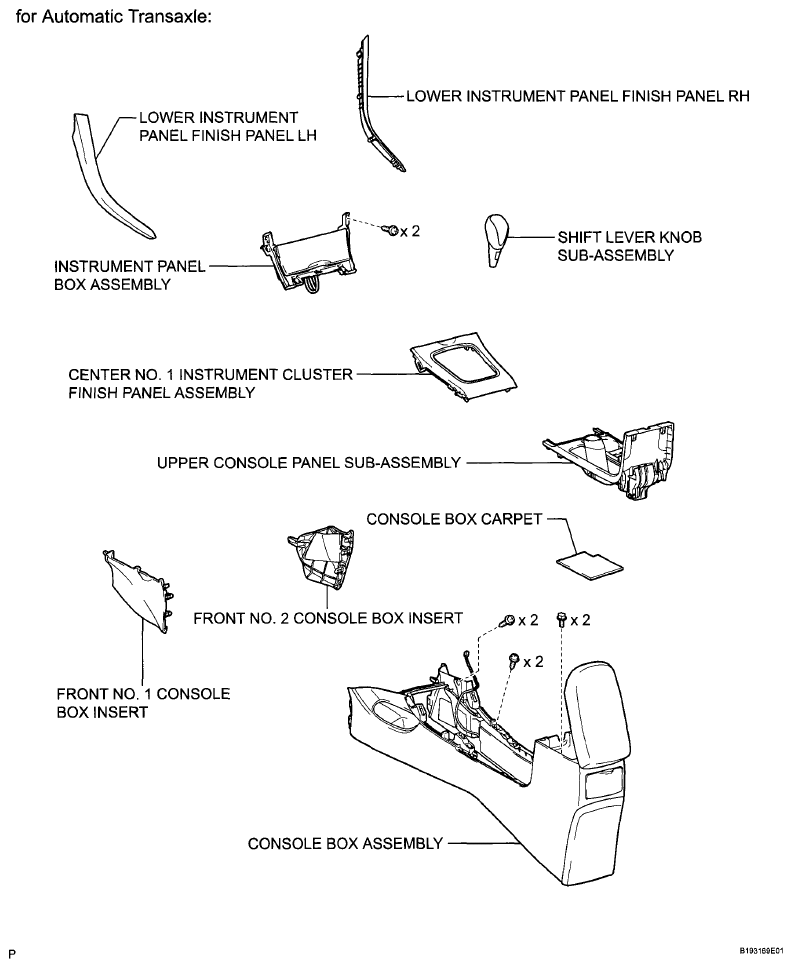

Fig 4: Radio Antenna Replacement Components With Torque Specifications (For Satellite Radio) (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

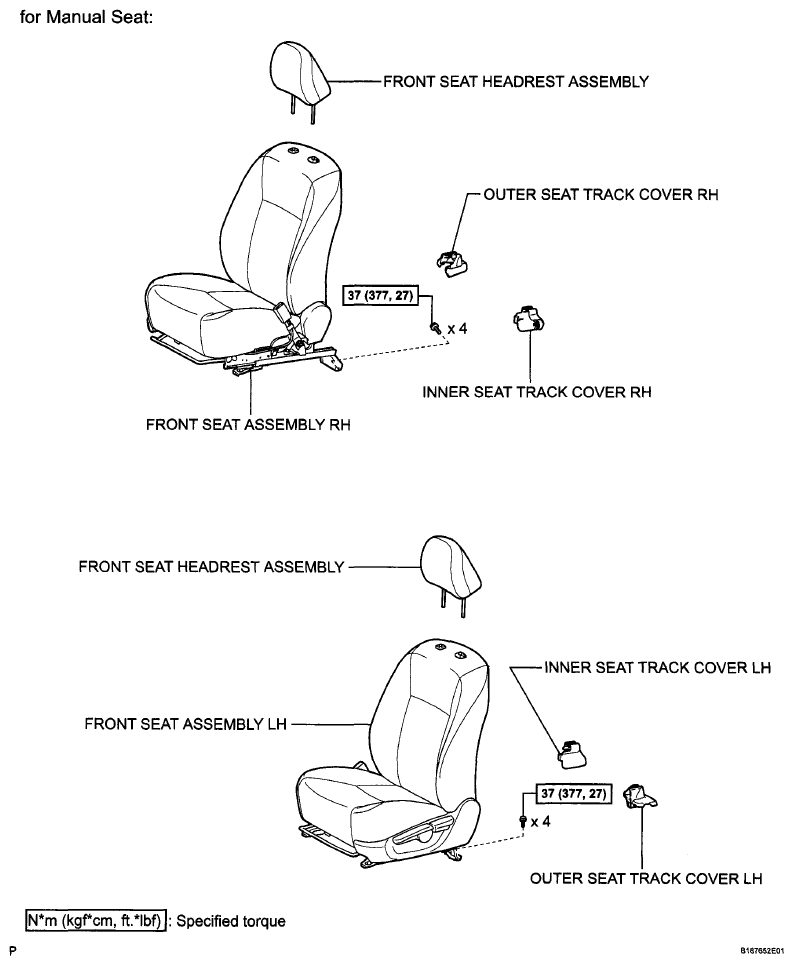

Fig 5: Radio Antenna Replacement Components With Torque Specifications (For Satellite Radio) (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

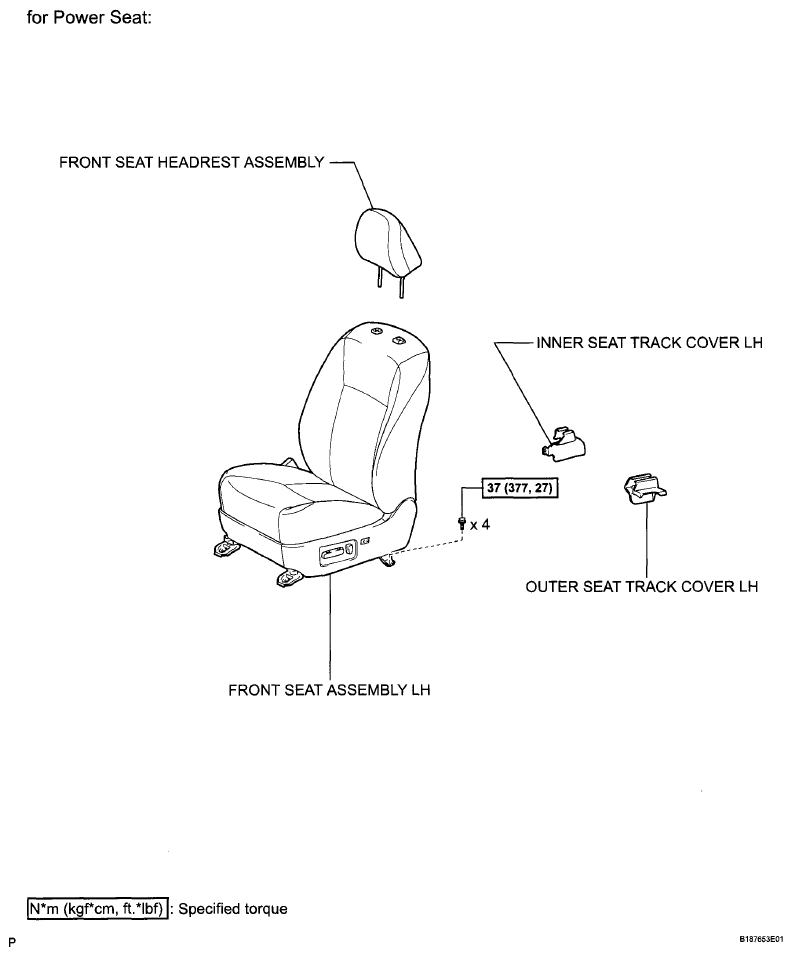

Fig 6: Radio Antenna Replacement Components With Torque Specifications (For Satellite Radio) (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

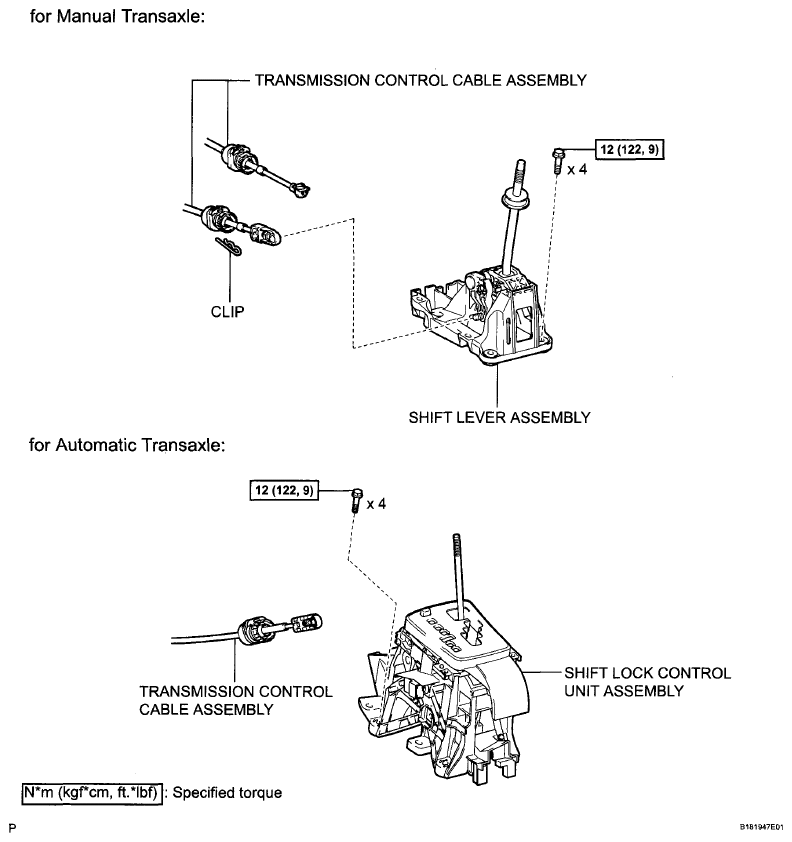

Fig 7: Radio Antenna Replacement Components With Torque Specifications (For Satellite Radio) (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

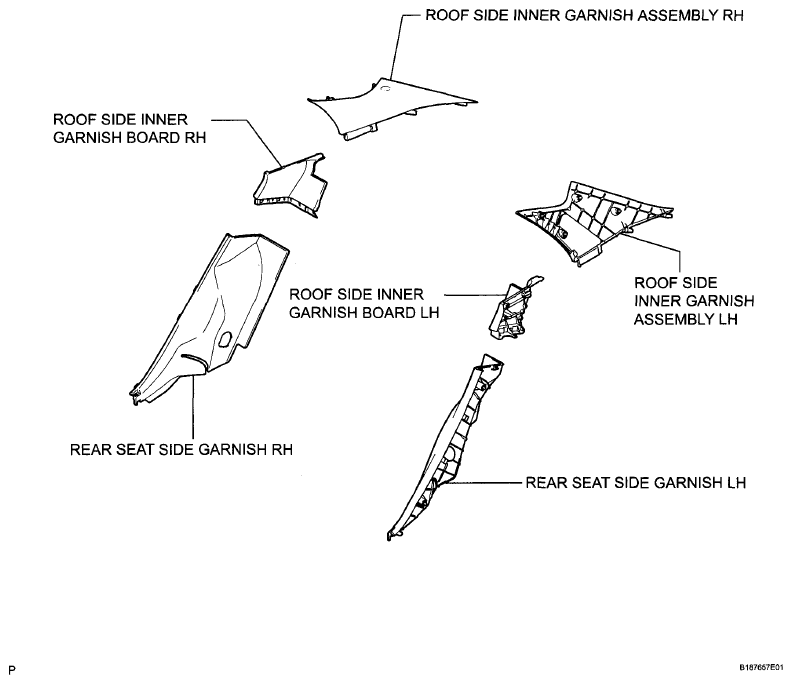

Fig 8: Radio Antenna Replacement Components With Torque Specifications (For Satellite Radio) (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Radio Antenna Replacement Components With Torque Specifications (For Satellite Radio) (8 Of 12)

Fig 10: Radio Antenna Replacement Components With Torque Specifications (For Satellite Radio) (9 Of 12)

Fig 11: Radio Antenna Replacement Components With Torque Specifications (For Satellite Radio) (10 Of 12)

Fig 12: Radio Antenna Replacement Components With Torque Specifications (For Satellite Radio) (11 Of 12)

Fig 13: Amplifier Antenna Replacement Components With Torque Specifications (13 Of 13)
