Front Console Box: Installation

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL CONSOLE BOX ASSEMBLY (for Automatic Transaxle)
    1. Install the 2 screws.

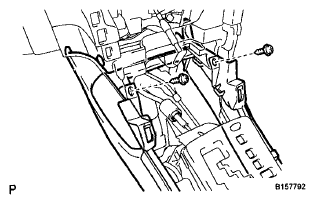

      Fig 1: Identifying Console Box Assembly With Screws
      G06015745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.

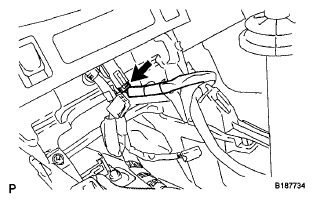

      Fig 2: Locating Connector
      G06015741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the console box assembly with the 2 bolts and 2 screws.

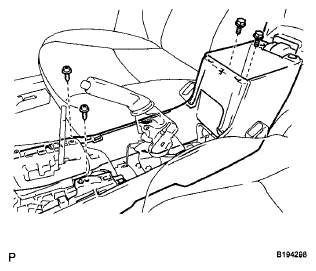

      Fig 3: Identifying Console Box Assembly Bolts And Screws (For Automatic Transaxle)
      G06015743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CONSOLE BOX ASSEMBLY (for Manual Transaxle)
    1. Install the 2 screws.

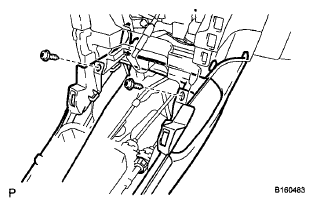

      Fig 4: Identifying Console Box Assembly With Screws
      G06015742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
      Fig 5: Locating Connector
      G06015741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the console box assembly with the 2 bolts.

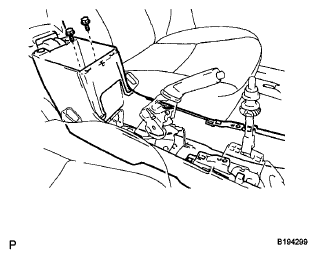

    Fig 6: Identifying Console Box Assembly With Bolts (For Manual Transaxle)
    G06015740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL CONSOLE BOX CARPET
    1. Install the console box carpet.

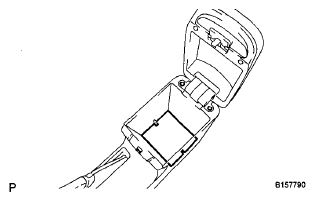

    Fig 7: Identifying Console Box Carpet
    G06015739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INSTRUMENT PANEL CUP HOLDER
    1. Install the instrument panel cup holder.

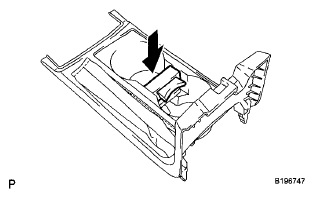

    Fig 8: Installing Instrument Panel Cup Holder
    G06015777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Engage the 6 clips and 2 guides, to install the upper console panel sub-assembly.
  6. INSTALL FRONT NO. 1 CONSOLE BOX INSERT  (See INSTALLATION )
  7. INSTALL FRONT NO. 2 CONSOLE BOX INSERT  (See INSTALLATION )
  8. INSTALL INSTRUMENT PANEL BOX ASSEMBLY  (See INSTALLATION )
  9. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  10. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  12. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )

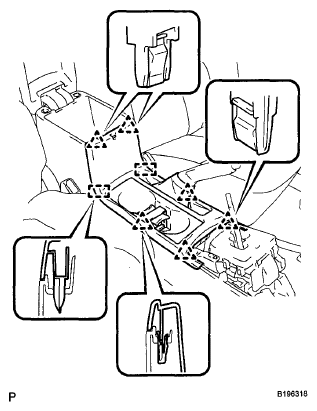

    Fig 9: Identifying Clips And Guides On Upper Console Panel Sub-Assembly
    G06015778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH  (See INSTALLATION )
  14. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH  (See INSTALLATION )
