System Diagram

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

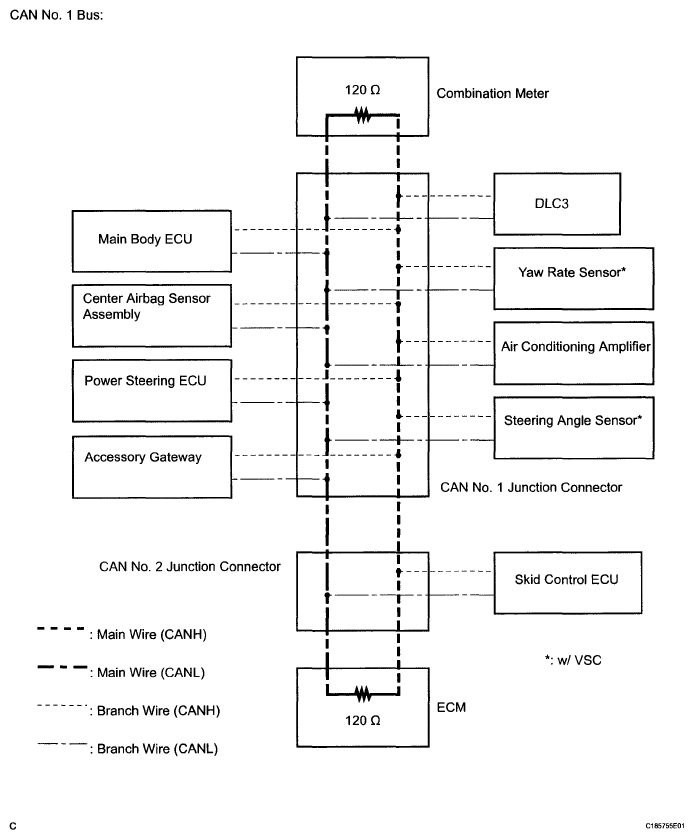

Fig 1: CAN Communication System Diagram (1 Of 2)
G06010931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

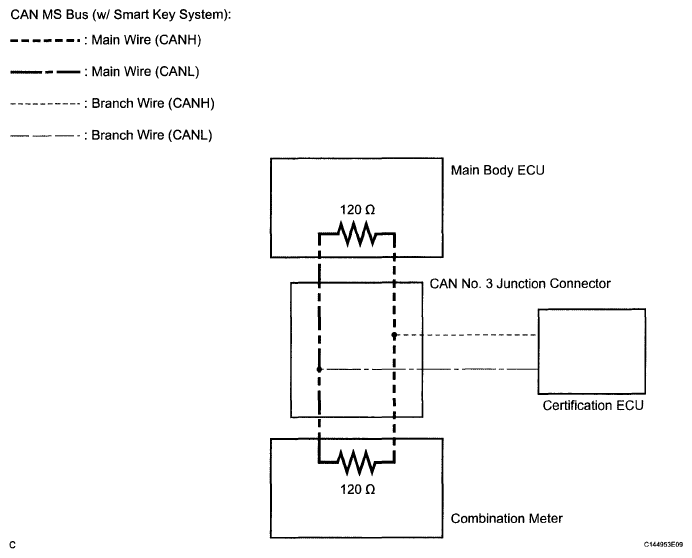

Fig 2: CAN Communication System Diagram (2 Of 2)
G06010932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
