Engine Control System - System & Component Testing, On-Vehicle Inspection, Removal, Inspection & Installation: ECM: Components

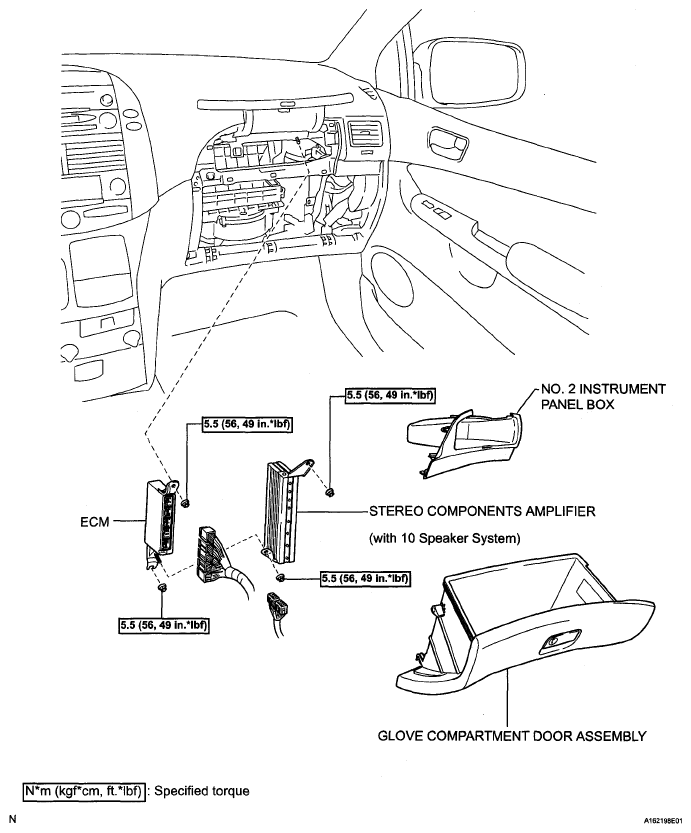

Fig 1: ECM Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
