ACIS Control Circuit: Wiring Diagram

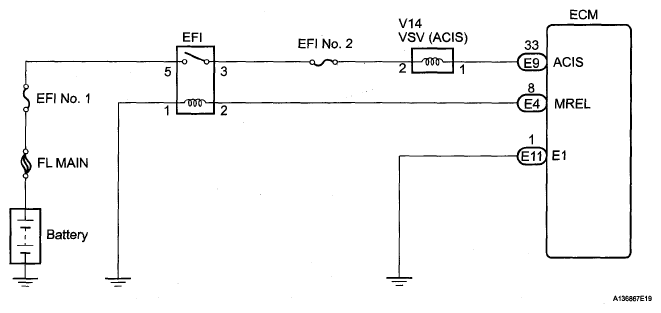

Fig 1: VSV And ECM - Wiring Diagram

G05136322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
