Oil Pump: Installation

1. Using SST, tap in a new oil seal until its surface is flush with the timing chain case edge.

   SST 09223-22010, 09506-35010

   NOTE:

   • Keep the lip free from foreign matter.
   • Do not tap on the oil seal at an angle.
   • Make sure that the oil seal edge does not stick out of the timing chain case.
     Fig 1: Installing Timing Chain Case Oil Seal

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply seal packing in a continuous line to the engine unit as shown in the following illustration.

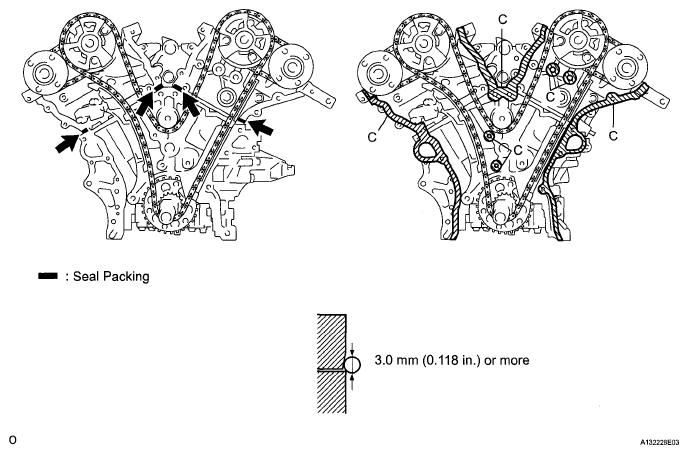

   Fig 2: Identifying Seal Applying Area On Packing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Seal packing: Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

   Seal diameter: 3.0 mm (0.118 in.)

   NOTE:

   • Be sure to clean and degrease the contact surfaces, especially the surfaces indicated by C in the illustration.
   • When the contact surfaces are wet, wipe them with an oil-free cloth before applying seal packing.
   • Install the chain cover within 3 minutes.
   • Do not start the engine for at least 2 hours after installing.
2. Apply seal packing in a continuous line to the timing chain cover as shown in the following illustration.

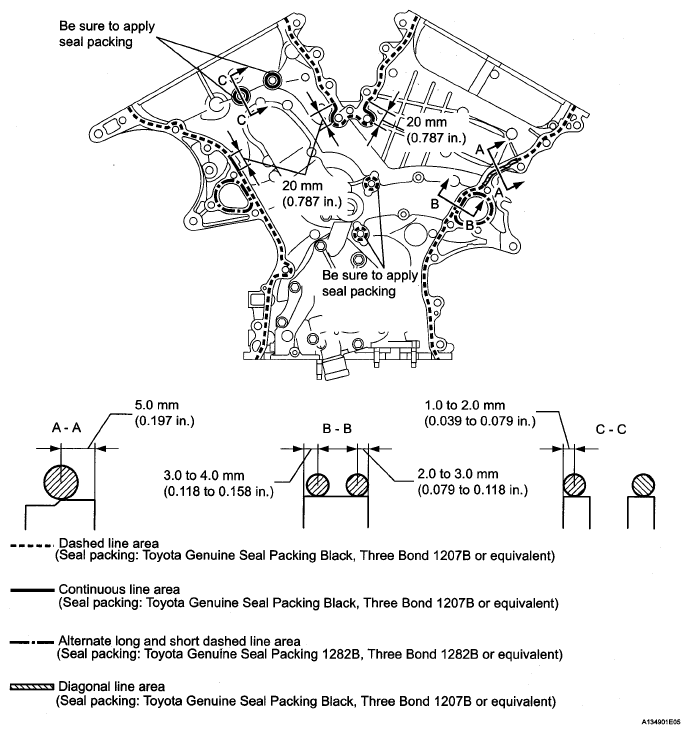

   Fig 3: Identifying Seal Applying Area On Timing Chain Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Seal packing: Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

   Toyota Genuine Seal Packing 1282B, Three Bond 1282B or equivalent

   NOTE:

   • When the contact surfaces are wet, wipe them with an oil-free cloth before applying seal packing.
   • Install the chain cover within 3 minutes and tighten the bolts within 15 minutes after applying seal packing.
   • Do not start the engine for at least 2 hours after installing it.

   Apply seal packing as follows

   SEAL PACKING SPECIFICATION



   Area	Seal Packing Diameter	Application Position from Inside Seal Line
   Continuous Line Area	4.5 mm (0.177 in.) or more	3.0 to 4.0 mm (0.118 to 0.158 in.)
   Alternate Long and Short Dashed Line Area	3.5 mm (0.138 in.) or more	2.0 to 3.0 mm (0.079 to 0.118 in.)
   Dashed Line Area	3.5 mm (0.138 in.) or more	3.0 to 4.0 mm (0.118 to 0.158 in.)
   Diagonal Line Area	6.0 mm (0.236 in.) or more	5.0 mm (0.197 in.)

3. Install a new gasket.
   Fig 4: Locating Gasket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Align the oil pump's drive rotor spline and the crankshaft as shown in the illustration. Install the spline and chain cover to the crankshaft.
Fig 5: Aligning Oil Pump Drive Rotor Spline And Crankshaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Temporarily tighten the timing chain cover with the 23 bolts and 2 nuts.
   Fig 6: Locating Timing Chain Cover Bolts And Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt length

   BOLT LENGTH SPECIFICATION



   Item	Length
   Bolt A	40 mm (1.57 in.)
   Bolt B	55 mm (2.17 in.)
   Bolt C	25 mm (0.98 in.)

   NOTE: Make sure that there is no oil on the bolt threads.
6. Fully tighten the bolts in: Area 1 and Area 2.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

7. Fully tighten the bolts and nuts in: Area 3.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

   HINT:

   Tighten the bolts and nuts from top to bottom as shown in the illustration.

8. Fully tighten the bolts in: Area 4.

   Torque: Bolt A 43 N*m (438 kgf*cm, 32 ft.*lbf)

   Except bolt A 21 N*m (214 kgf*cm, 15 ft.*lbf)

   HINT:

   Tighten the bolts from bottom to top as shown in the illustration.

1. Install a new gasket to the oil pan sub-assembly.
2. Install the oil cooler pipe with the bolt and 2 nuts.

   Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)

Fig 7: Locating Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

See INSTALLATION
