Sound Signal Circuit Between Navigation Receiver Assembly And Television Display Assembly: Wiring Diagram

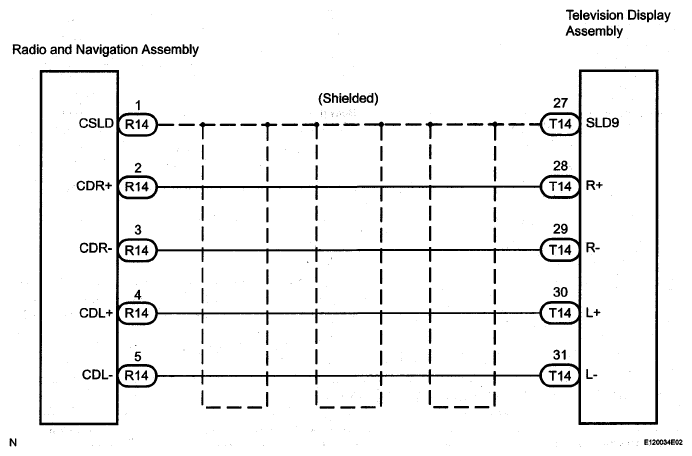

Fig 1: Sound Signal Circuit - Wiring Diagram

G05141410

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
