Inspection Procedure

1. Disconnect the navigation receiver assembly connector R13 and stereo component amplifier connector S11.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester connection	Condition	Specified condition
   IVO+ - INT+	Always	Below 1 Ω
   IVO- - INT-	Always	Below 1 Ω
   IVO+ - Body ground	Always	10 kΩ or higher
   IVO- - Body ground	Always	10 kΩ or higher

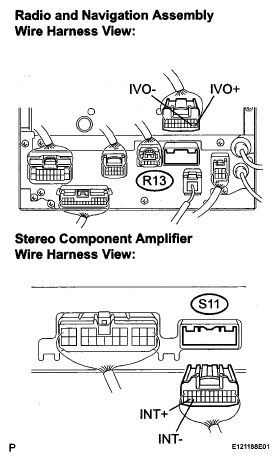

Fig 1: Identifying Navigation Receiver Assembly Connector R13 And Stereo Component Amplifier Connector S11
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
