Microphone Circuit Between Microphone And Navigation Receiver Assembly: Wiring Diagram

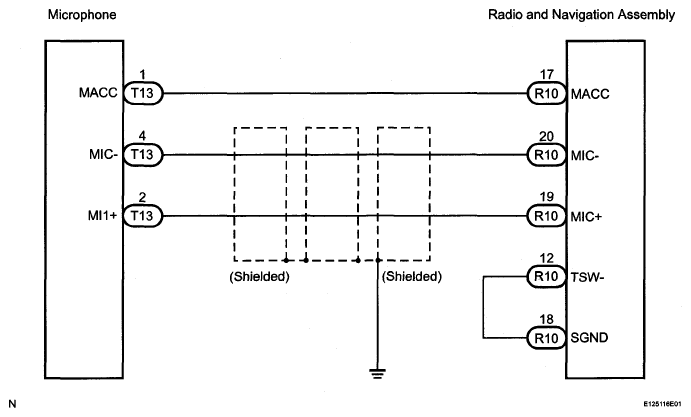

Fig 1: Microphone Circuit - Wiring Diagram
