Display Signal Circuit Between Television Display Assembly And Navigation Receiver Assembly: Wiring Diagram

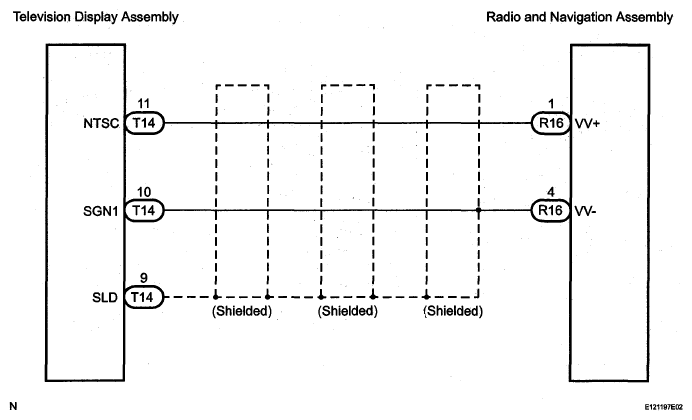

Fig 1: Display Signal Circuit - Wiring Diagram
G05141431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
