Inspection Procedure

NOTE: Be sure to read DESCRIPTION before performing the following procedures.
  1. CHECK NAVIGATION RECEIVER ASSEMBLY POWER SOURCE CIRCUIT

    Refer to the NAVIGATION RECEIVER ASSEMBLY POWER SOURCE CIRCUIT .

    If the power source circuit is operating normally, proceed to the next step.

  2. IDENTIFY THE COMPONENT WHICH HAS STORED THIS CODE
    1. Enter the diagnostic mode.
    2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
    3. Identify the component which has stored this code. Component Table:
      DISPLAY COMPONENT

      Display Component
      Rr-TV Television display assembly
      DSP-AMP Stereo component amplifier

      HINT:

      "NAVI" is the component which has stored this code in the example shown in the illustration.

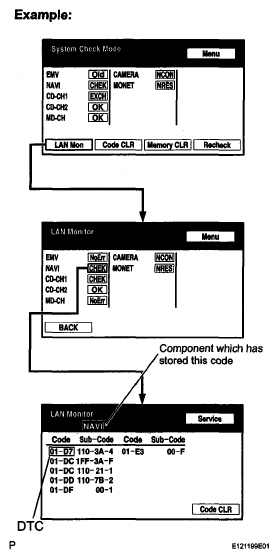

      Fig 1: Diagnostic Tool Display - LAN Monitor
      G05141303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CHECK POWER SOURCE CIRCUIT OF COMPONENT WHICH HAS STORED THIS CODE
    1. Inspect the power source circuit of the component which has stored this code.

      If the power source circuit is operating normally, proceed to the next step.

      Component Table:

      COMPONENT CHART

      Component Proceed to
      Television display assembly (Rr-TV) Television display assembly power source circuit (See TELEVISION DISPLAY POWER SOURCE CIRCUIT )
      Stereo component amplifier (DSP-AMP) Stereo component amplifier power source circuit (See STEREO COMPONENT AMPLIFIER POWER SOURCE CIRCUIT  )
  4. CHECK NAVIGATION RECEIVER ASSEMBLY
    1. Disconnect the navigation receiver assembly connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      ATX+ (R15-5) - ATX-(R15-15) Always 60 to 80 Ω
      TX+ (R14-9) - TX- (R14-10) Always 60 to 80 Ω
      3. Fig 2: Identifying Navigation Receiver Assembly Connector
      G05141304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE NAVIGATION RECEIVER ASSEMBLY

    OK: Go to Next Step

  5. CHECK HARNESS AND CONNECTOR

    HINT:

    For details of the connectors, refer to "TERMINALS OF ECU ".

    1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the navigation receiver assembly and the component which has stored this code.
      1. Disconnect all connectors between the navigation receiver assembly and the component which has stored this code.
      2. Check for an open or short in the AVC-LAN circuit between the navigation receiver assembly and the component which has stored this code.

        OK: There is no open or short circuit.

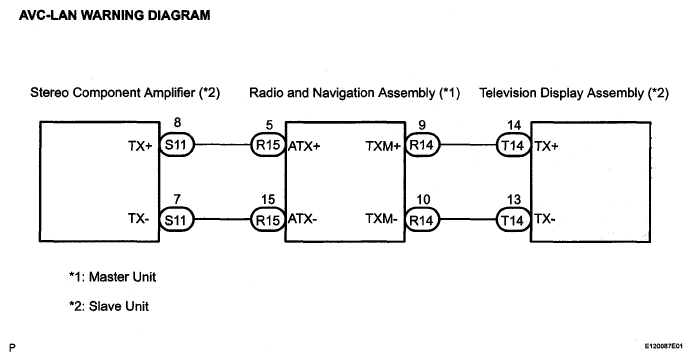

        Fig 3: AVC-LAN Wiring Diagram
        G05141305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  6. REPLACE COMPONENT WHICH HAS STORED THIS CODE
    1. Replace the component which has stored this code with a normal one and check if the same problem occurs again.

      OK: Same problem does not occur.

    NG: REPLACE NAVIGATION RECEIVER ASSEMBLY

    OK: END
