Home >> Toyota >> 2009 >> Sequoia Limited, 5.7 W >> Repair and Diagnosis >> Transmission >> Transfer Case >> 4WD Control Ecu >> Components

4WD Control Ecu: Components

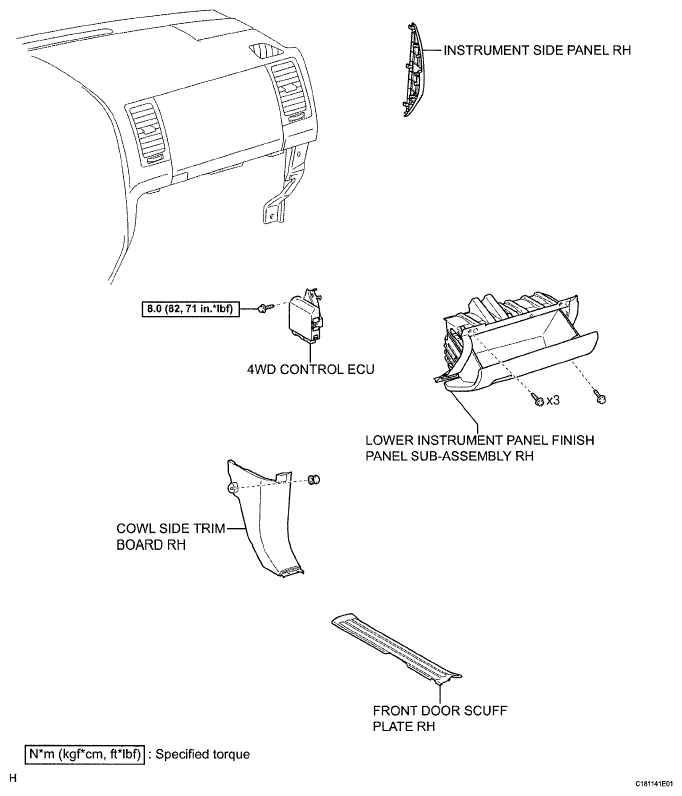

Fig 1: 4WD Control ECU Replacement Components With Torque Specifications

G05648740

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
