Home >> Toyota >> 2009 >> Sequoia Limited, 5.7 W >> Repair and Diagnosis >> Suspension >> Suspension Control Systems >> Height Control Compressor >> Components

Height Control Compressor: Components

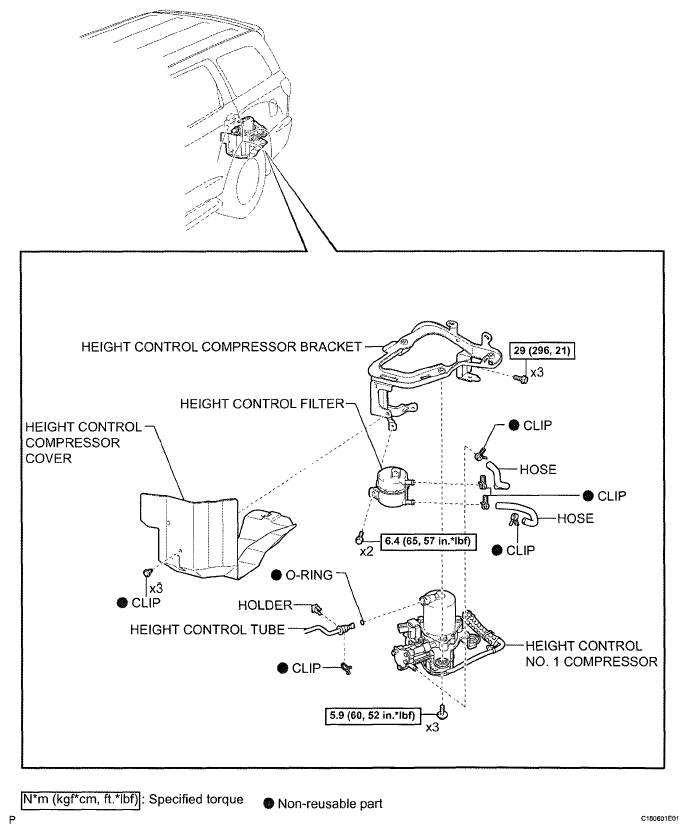

Fig 1: Height Control Compressor Replacement Components With Torque Specifications

G05649231

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
