Absorber Control Actuator: Components

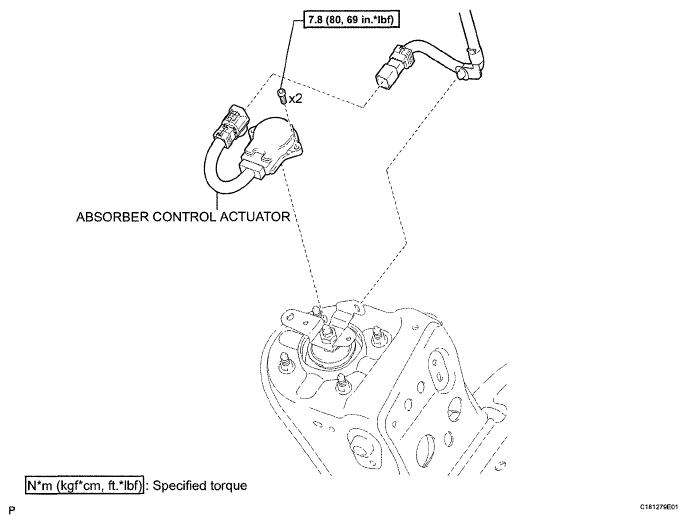

Fig 1: Absorber Control Actuator Replacement Components With Torque Specifications

G05649268

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
