Headlight Cleaner: Notes

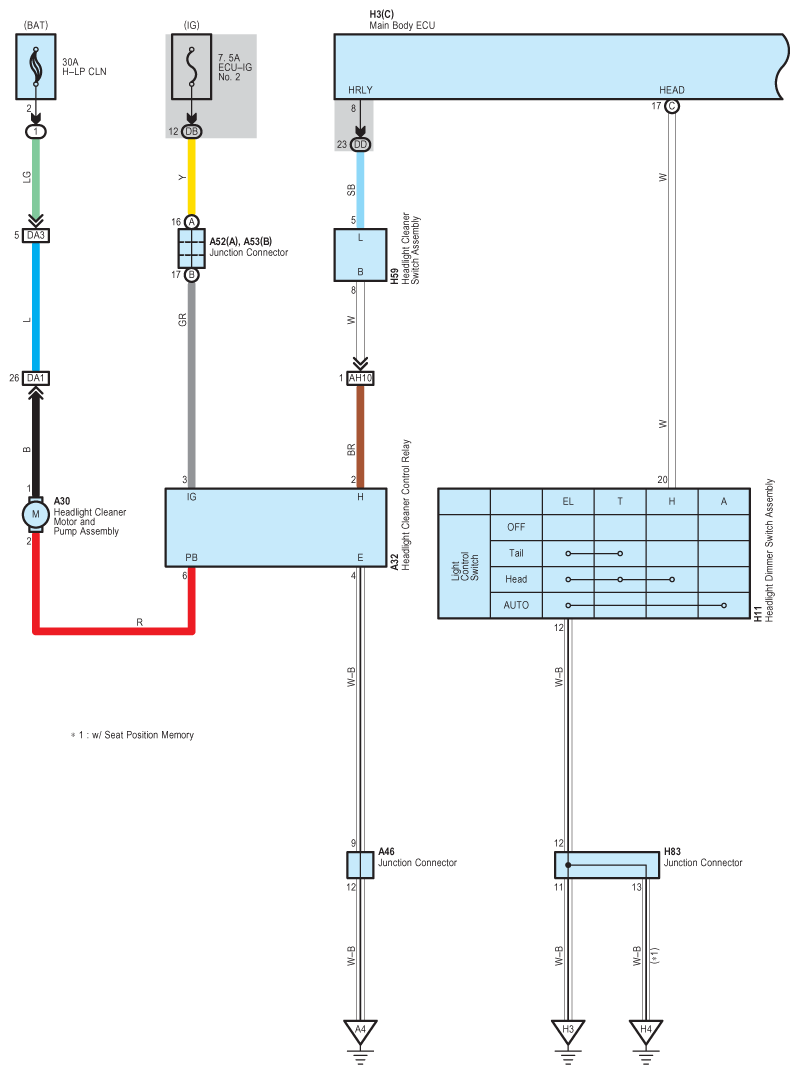

Fig 1: Headlight Cleaner - Circuit Diagram (1 Of 2)
G07609064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

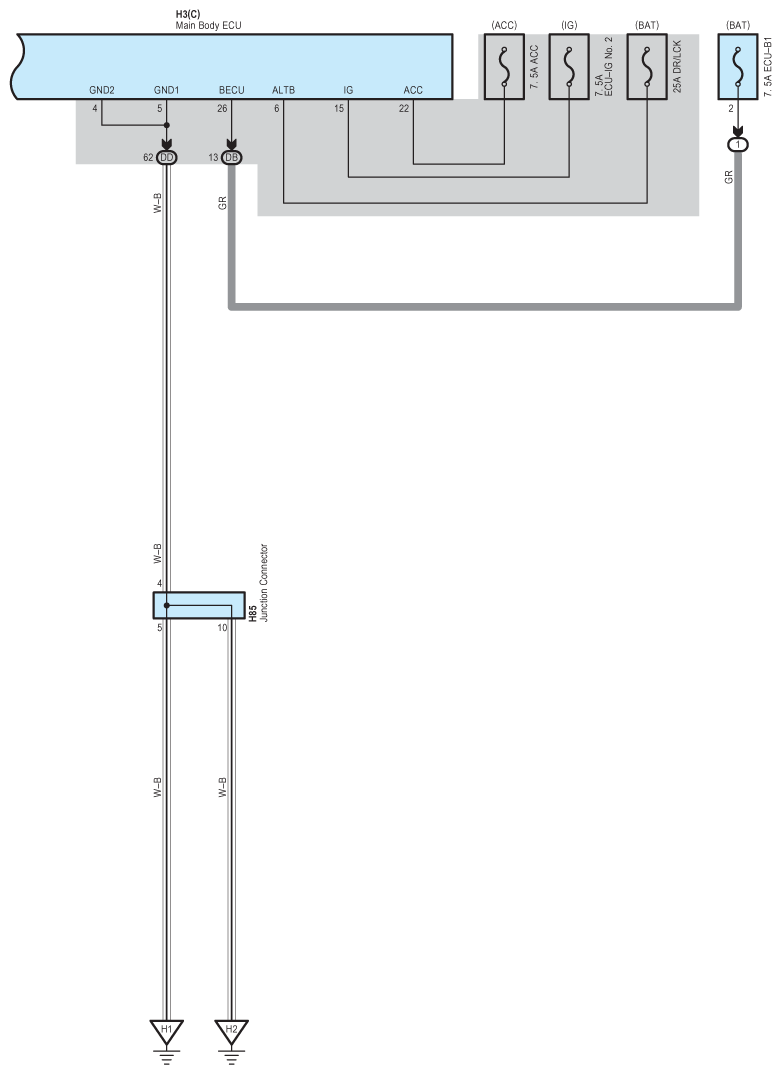

Fig 2: Headlight Cleaner - Circuit Diagram (2 Of 2)
G07609065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
