Ignition Coil And Spark Plug: Components

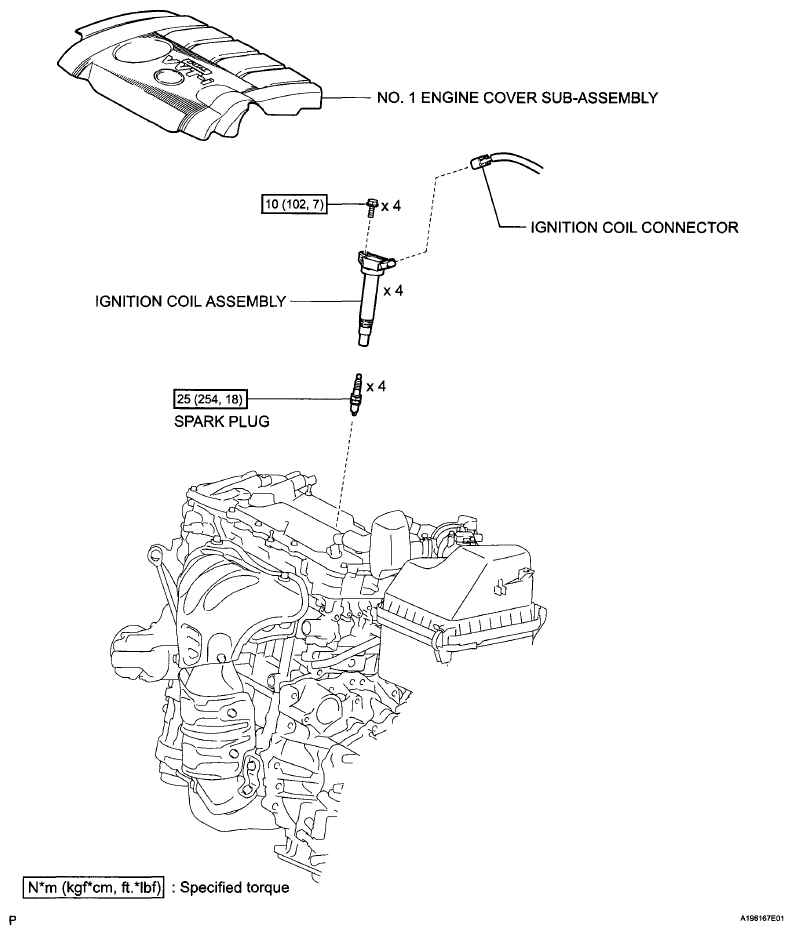

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications

G05999126

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
