Engine Immobiliser System (w/o Smart Key System): Notes

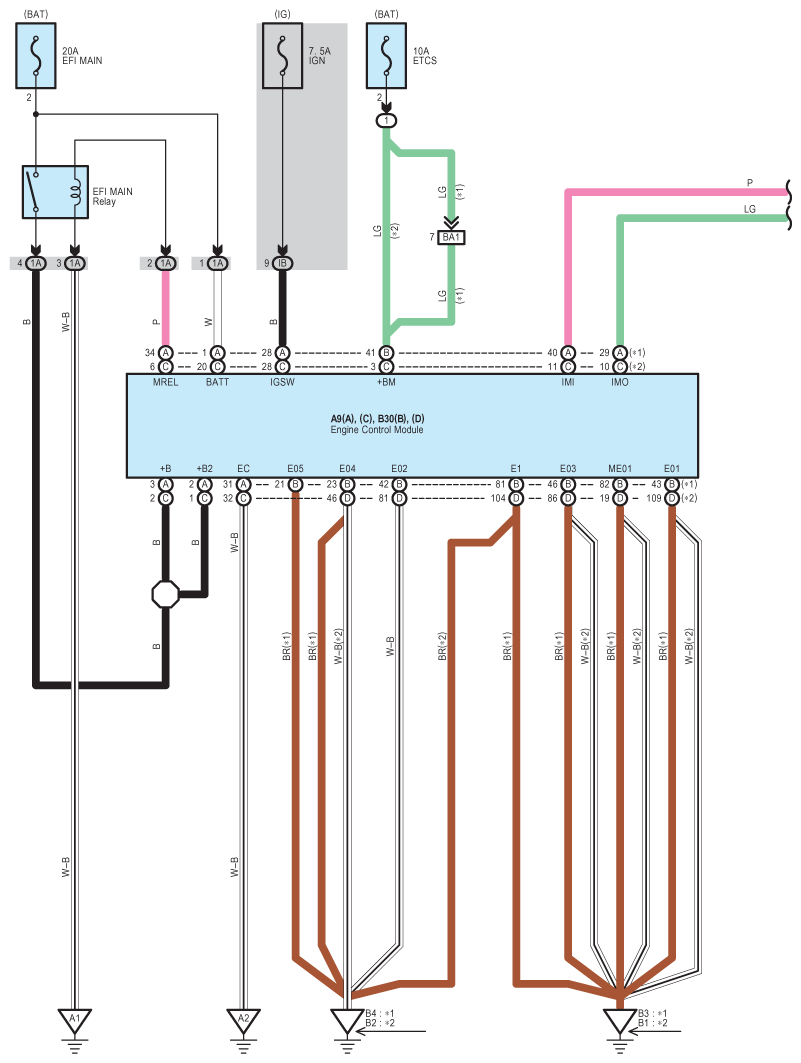

Fig 1: Engine Immobiliser System (W/O Smart Key System) - Circuit Diagram (1 Of 2)
G07611612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

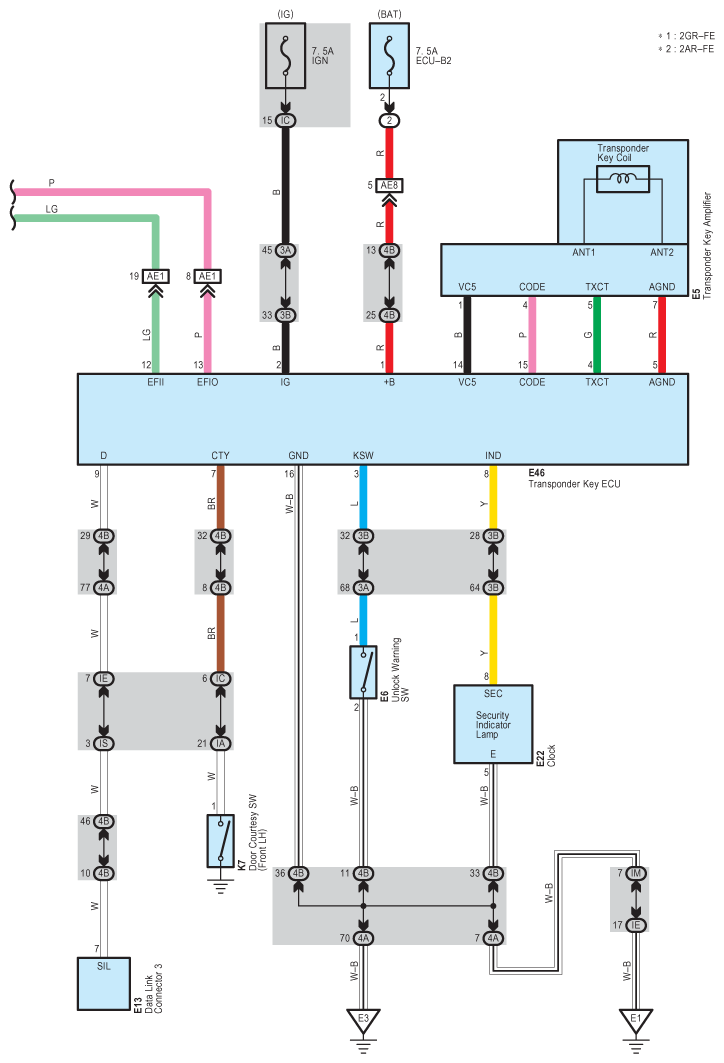

Fig 2: Engine Immobiliser System (W/O Smart Key System) - Circuit Diagram (2 Of 2)
G07611613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
