Home >> Toyota >> 2009 >> RAV4 Base, 3.5 K, FWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension System >> Rear Upper Control Arm >> Components

Rear Upper Control Arm: Components

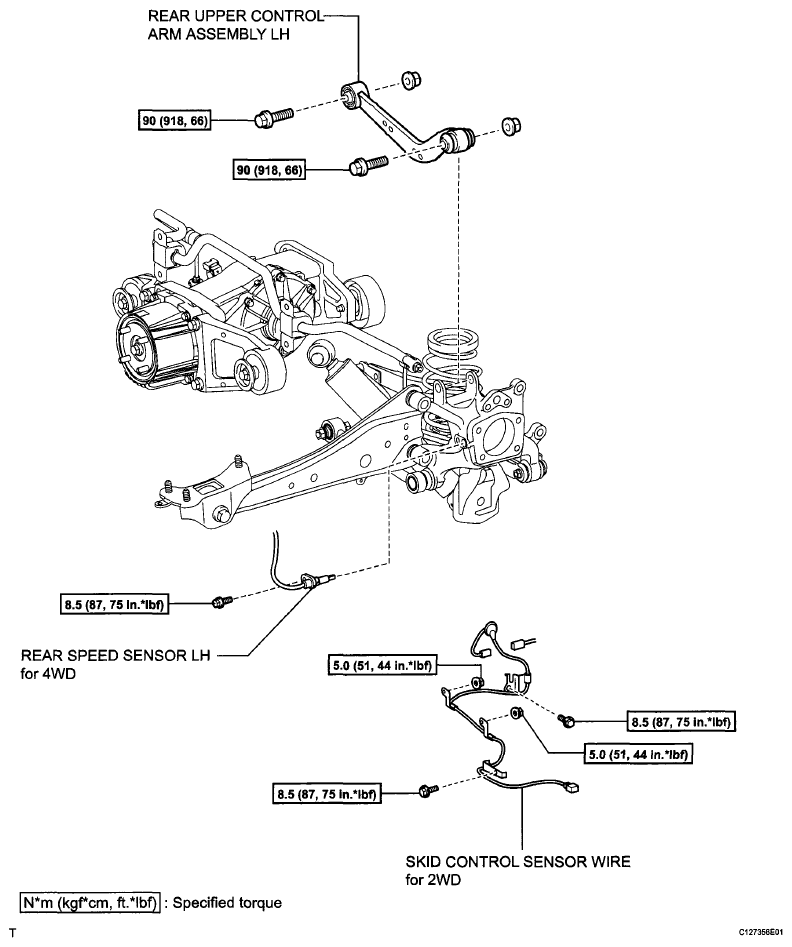

Fig 1: Rear Upper Control Arm Replacement Components With Torque Specifications
G06003139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
