Rear Trailing Arm: Components

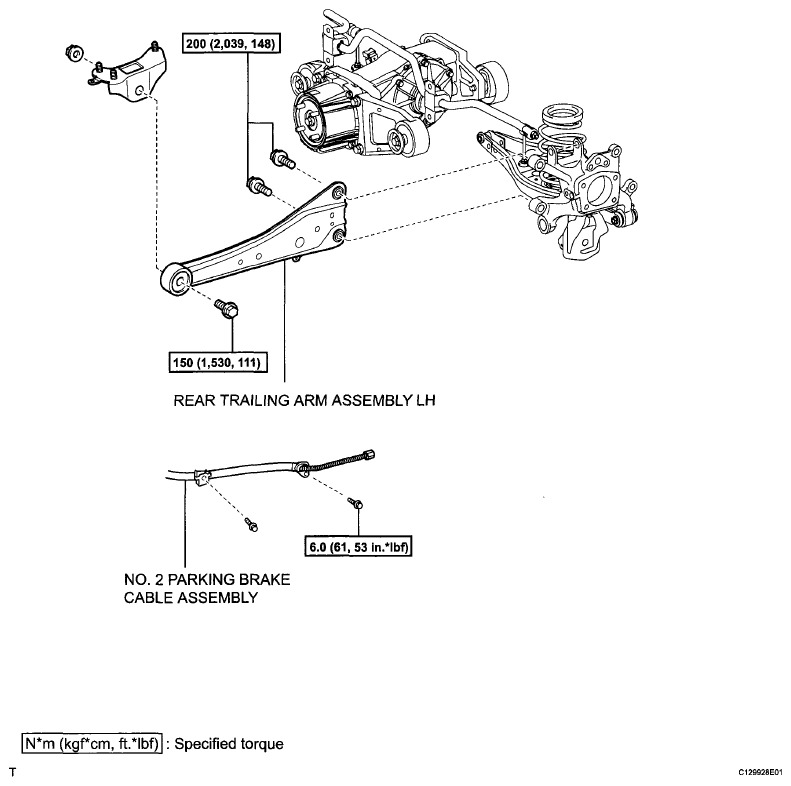

Fig 1: Rear Trailing Arm Replacement Components With Torque Specifications

G06003157

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
