Home >> Toyota >> 2009 >> RAV4 Base, 3.5 K, FWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension System >> Rear Coil Spring >> Components

Rear Coil Spring: Components

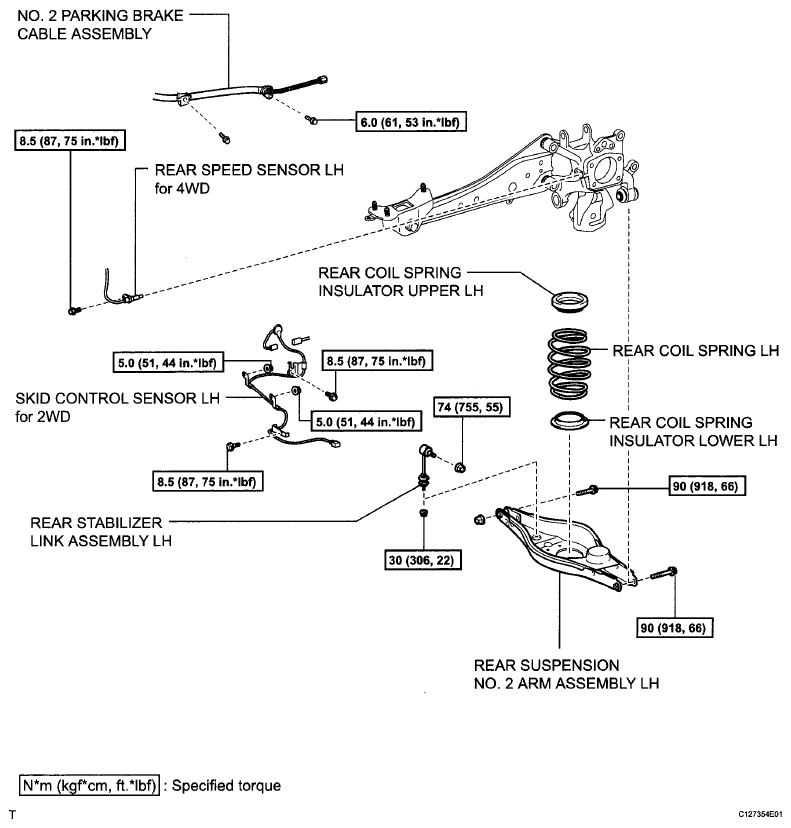

Fig 1: Rear Coil Spring Replacement Components With Torque Specifications

G06003126

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
