System Diagram

  1. FUEL FLOW DIAGRAM

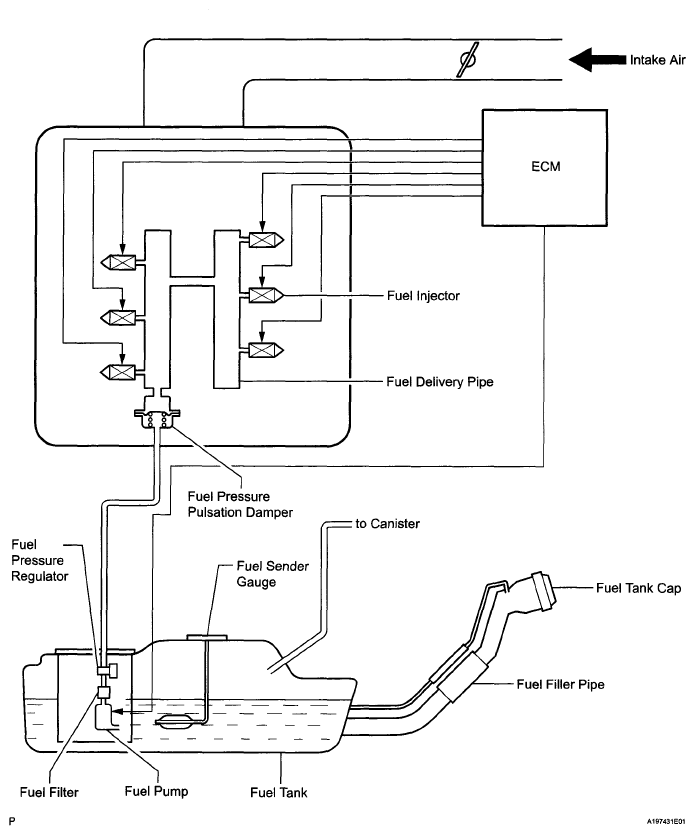

    Fig 1: Fuel Flow Diagram
    G05998536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. FUEL SYSTEM WIRING DIAGRAM

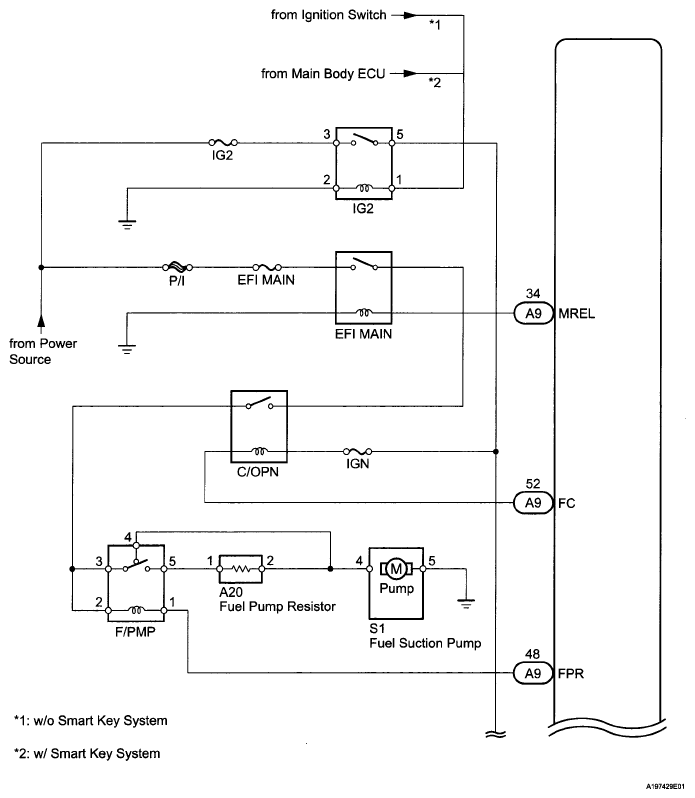

    Fig 2: Fuel System Wiring Diagram (1 Of 2)
    G05998537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

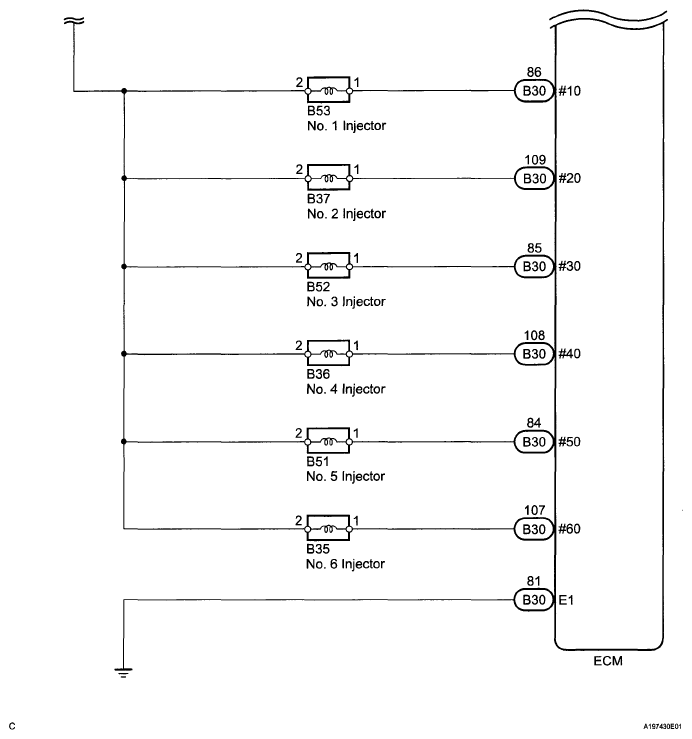

    Fig 3: Fuel System Wiring Diagram (2 Of 2)
    G05998538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
