Cruise Control (2GR-FE): Notes

Fig 1: Cruise Control (2GR-FE) - Circuit Diagram (1 Of 6)
G07611677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

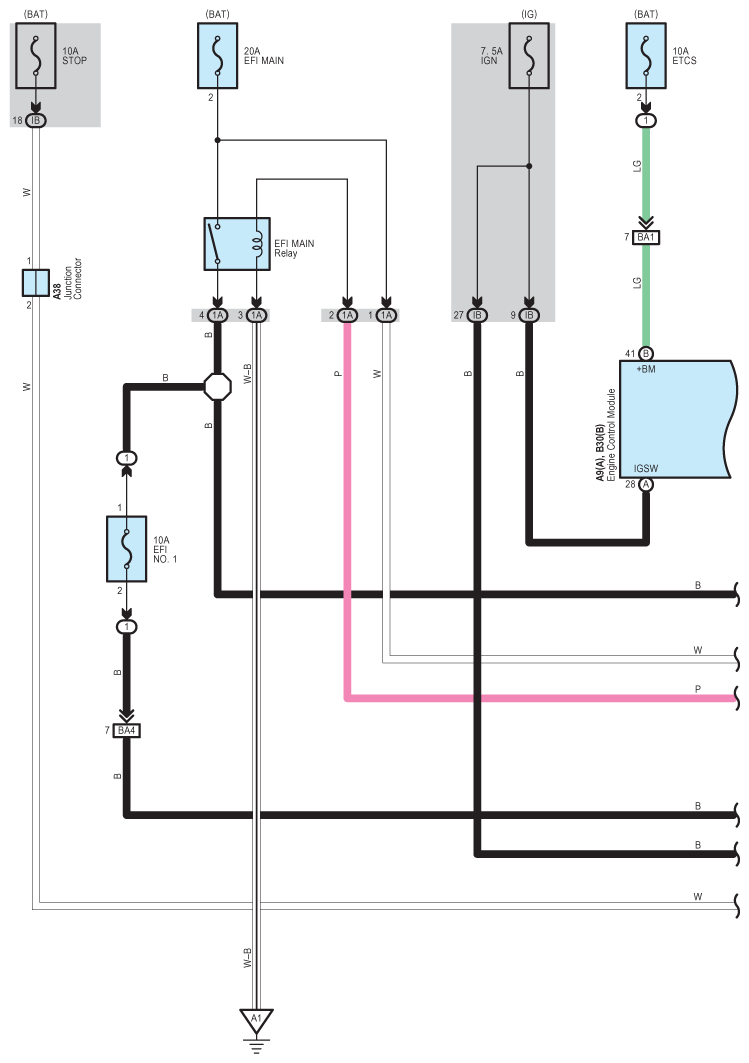

Fig 2: Cruise Control (2GR-FE) - Circuit Diagram (2 Of 6)
G07611678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

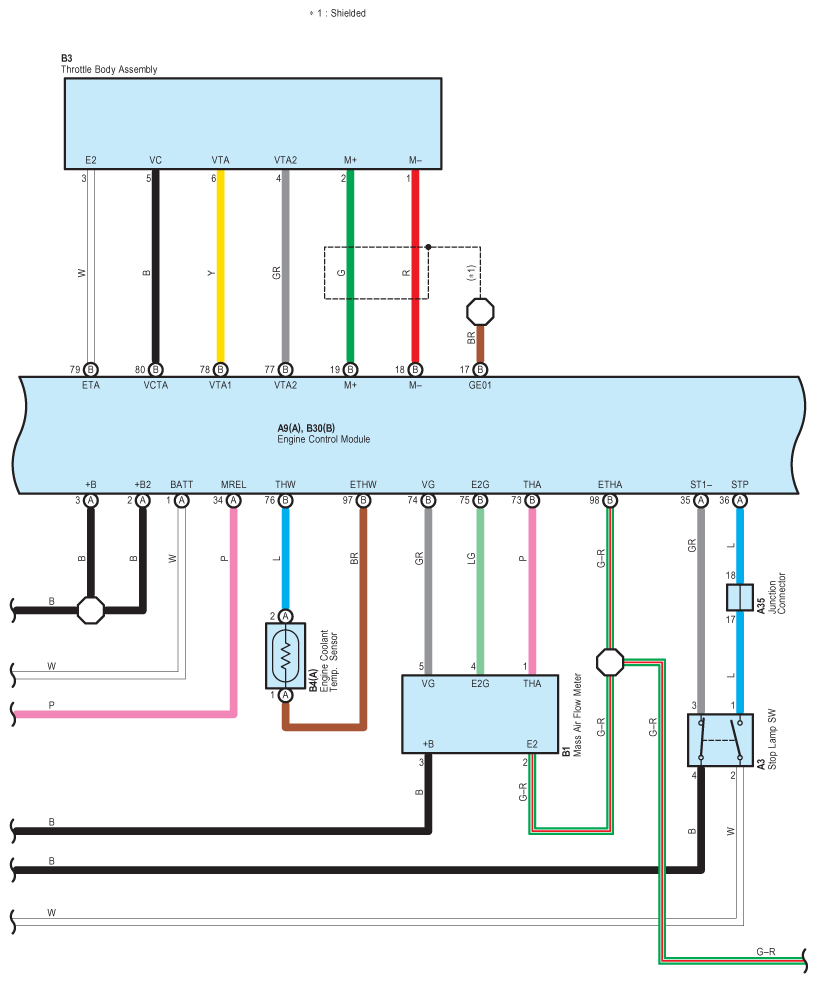

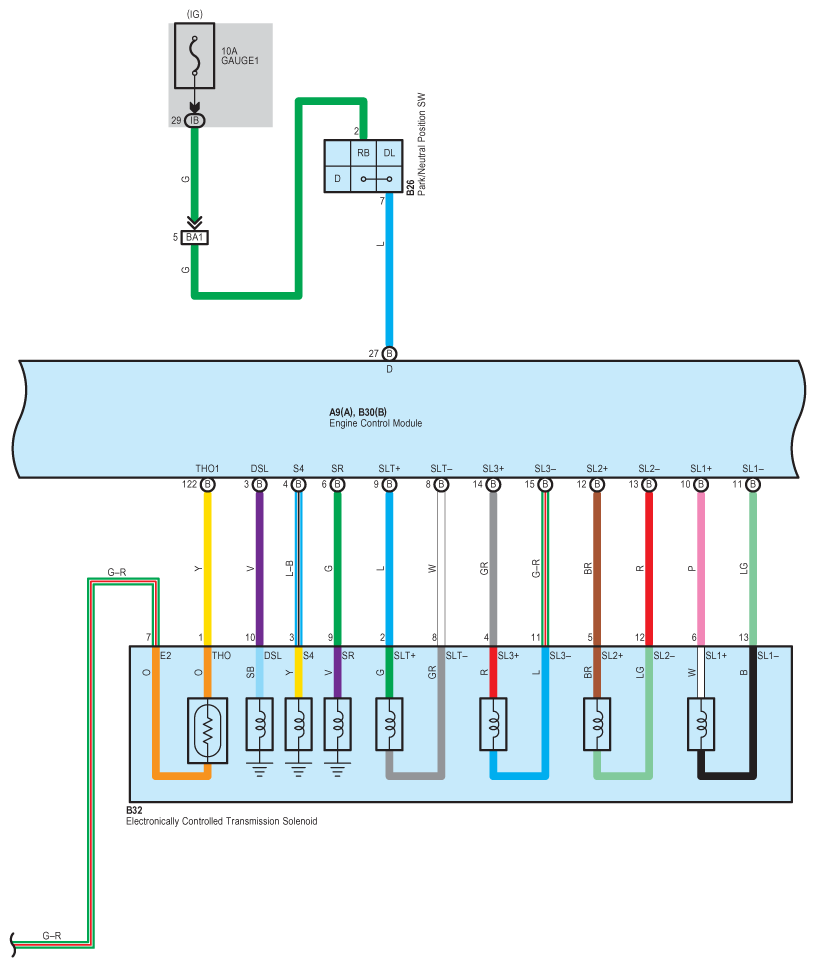

Fig 3: Cruise Control (2GR-FE) - Circuit Diagram (3 Of 6)
G07611679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

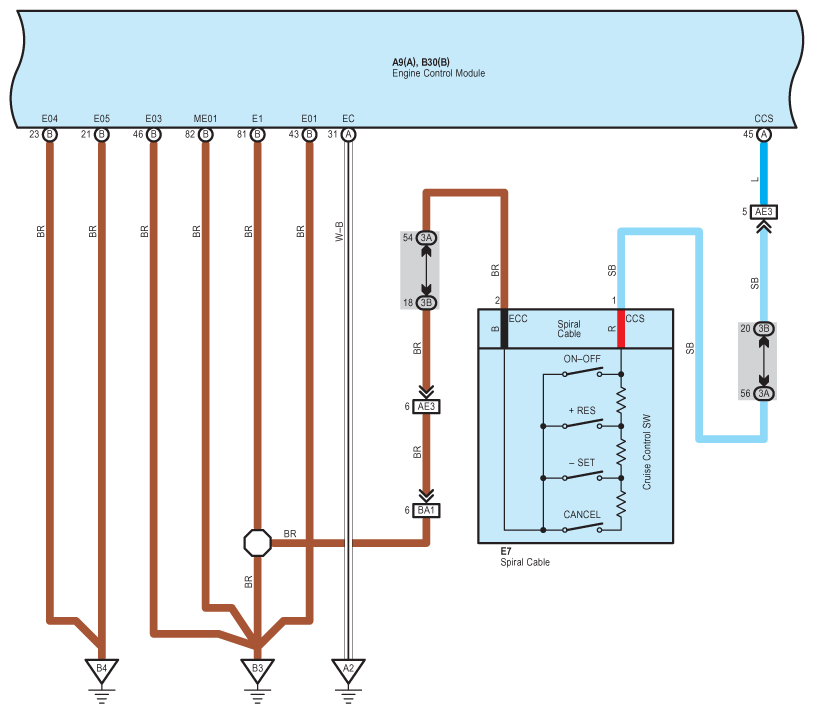

Fig 4: Cruise Control (2GR-FE) - Circuit Diagram (4 Of 6)
G07611680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

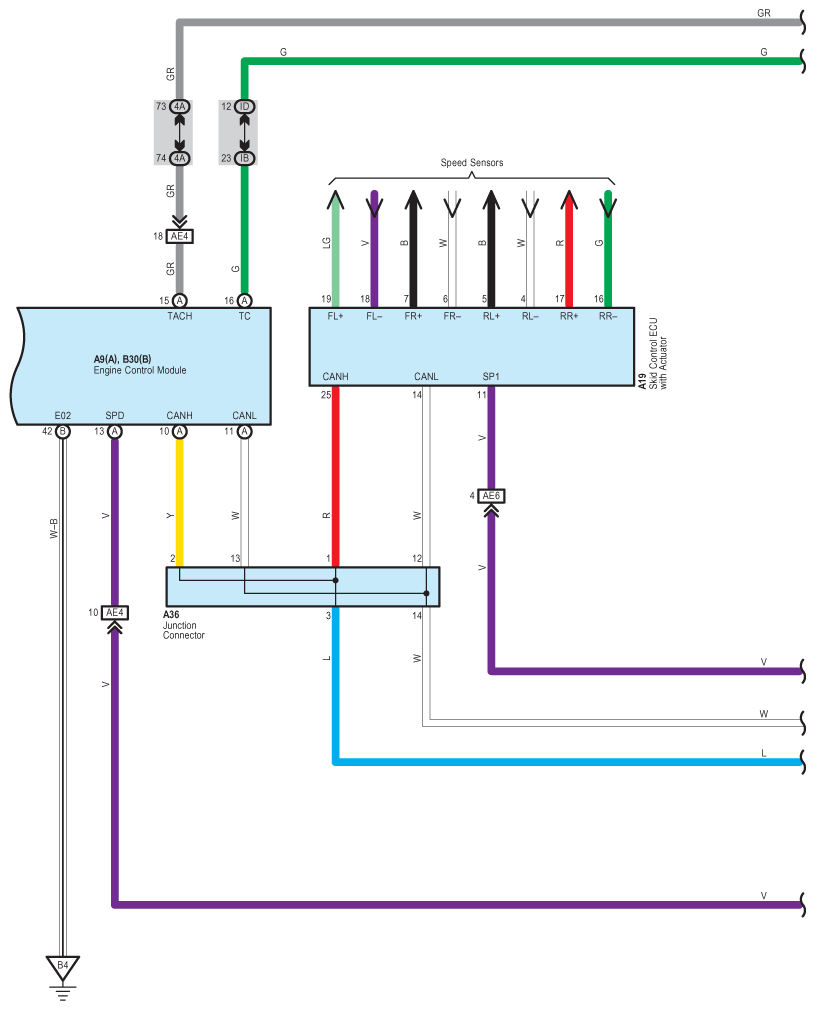

Fig 5: Cruise Control (2GR-FE) - Circuit Diagram (5 Of 6)
G07611681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

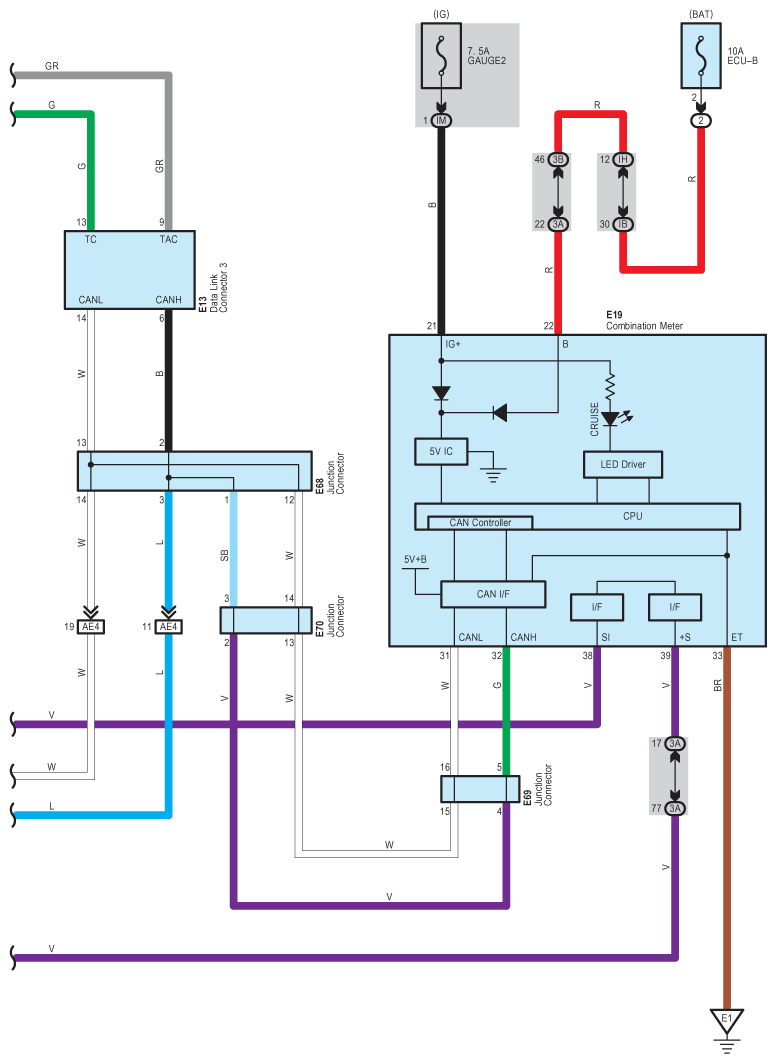

Fig 6: Cruise Control (2GR-FE) - Circuit Diagram (6 Of 6)
G07611682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
