Abs And Traction Actuator: Components

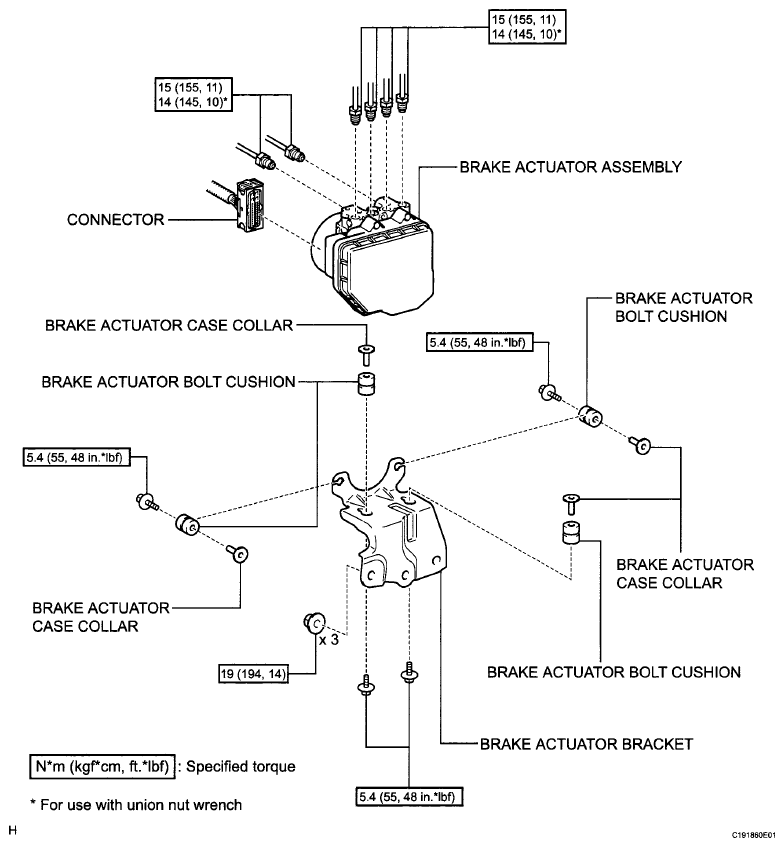

Fig 1: Identifying ABS And Traction Actuator Components

G06003385

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
