Home >> Toyota >> 2009 >> RAV4 Base, 3.5 K, FWD >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Outer Rear View Mirror >> Components

Outer Rear View Mirror: Components

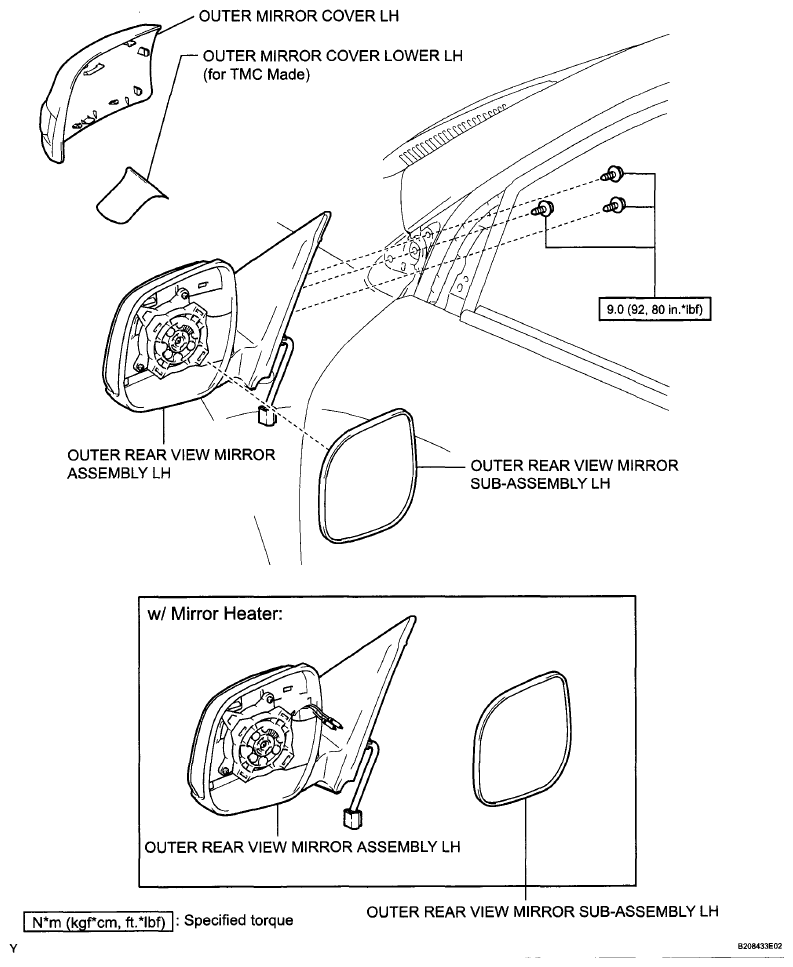

Fig 1: Outer Rear View Mirror Replacement Components With Torque Specifications
G06000683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Door Replacement Components With Torque Specifications
G06000684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
