Section 10 (Intake (2AR-FE))
>>
Intake System
>>
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

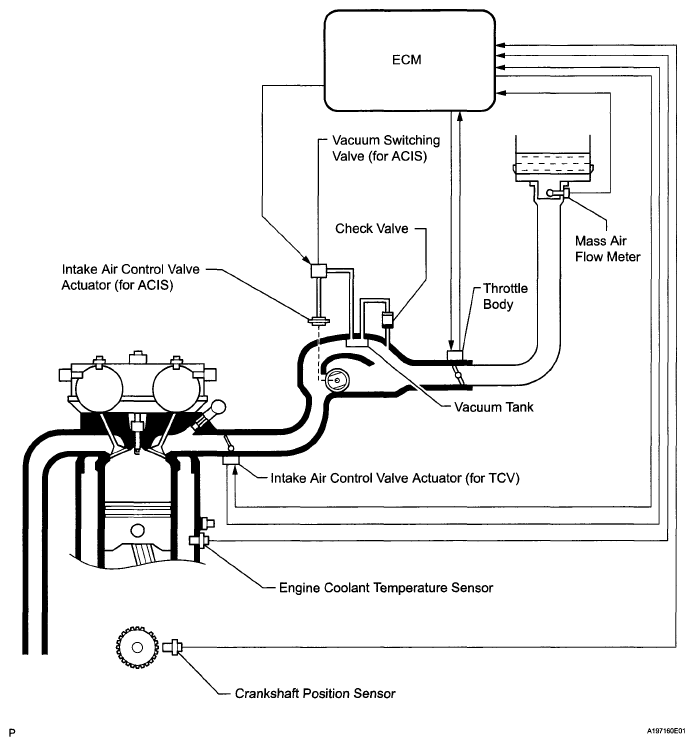

Fig 1: Intake System Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

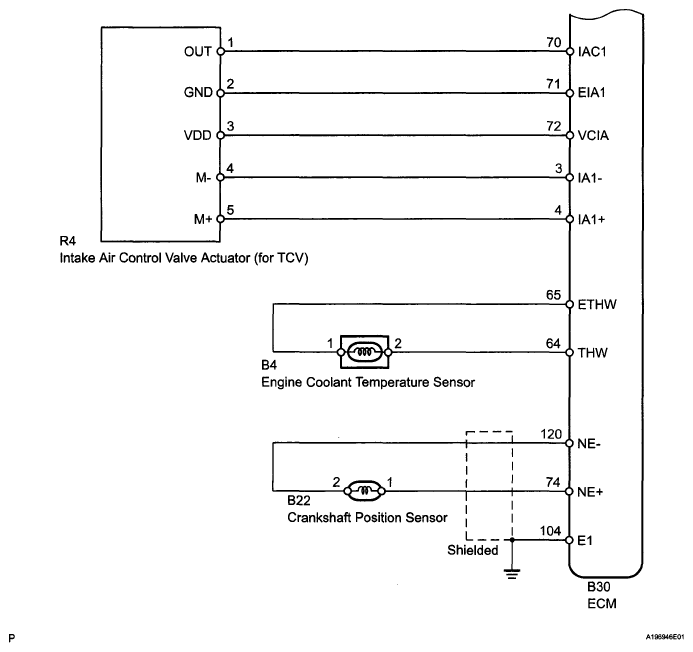

Fig 2: Intake System Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

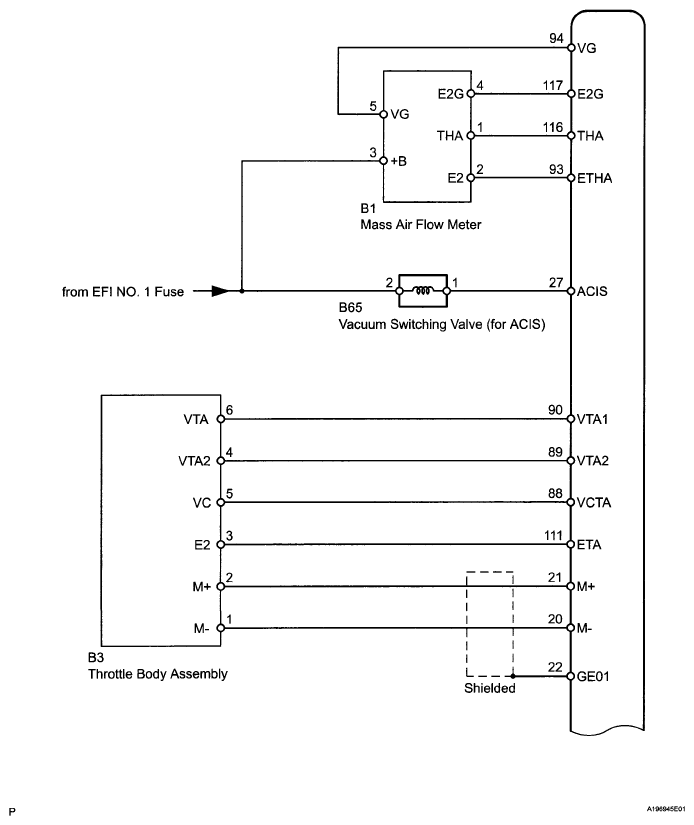

Fig 3: Intake System Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
