Section 10 (Intake (2AR-FE))
>>
Intake System
>>
Parts Location
Parts Location
WARNING:
This page is about a different variant/trim than selected.

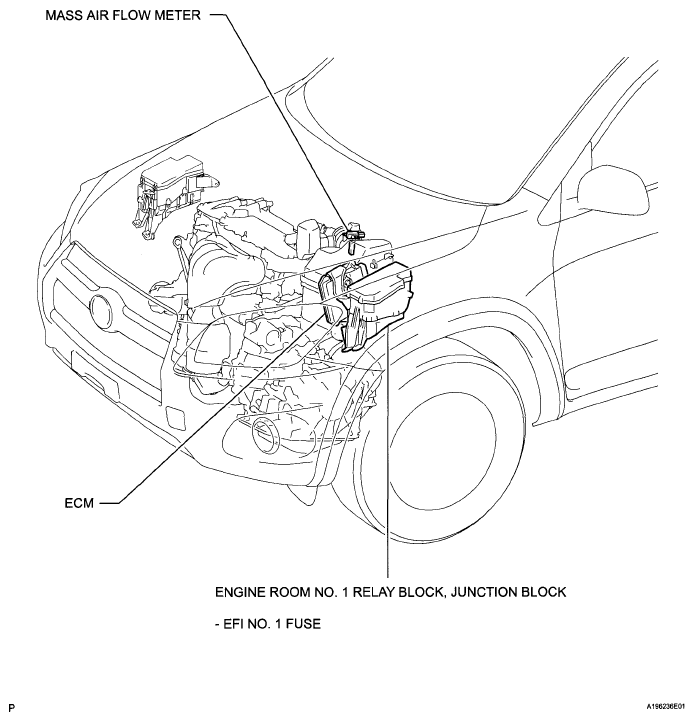

Fig 1: Identifying Intake System Parts Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

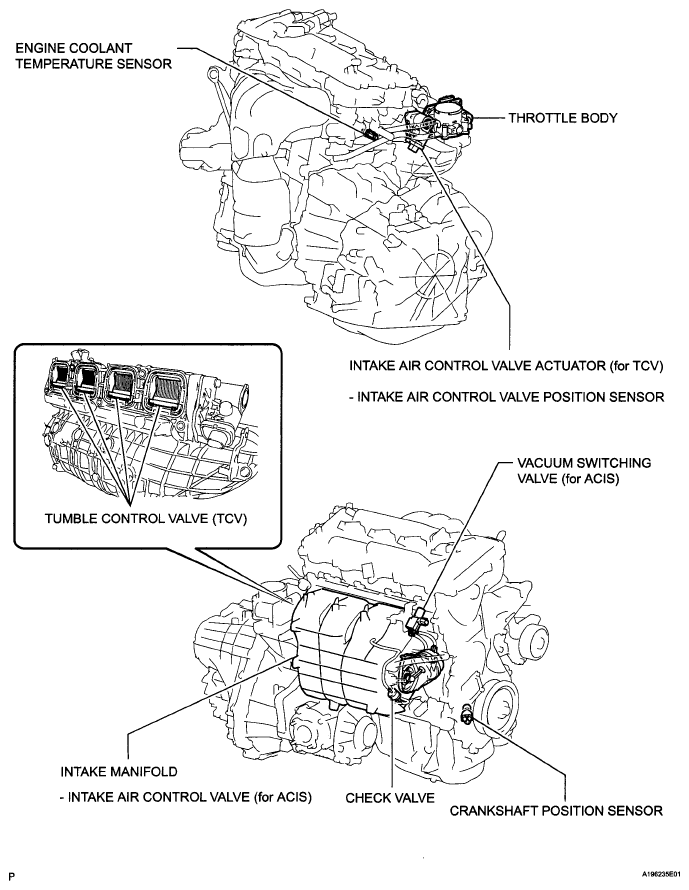

Fig 2: Identifying Intake System Parts Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
