Intake Manifold: Components

WARNING: This page is about a different variant/trim than selected.

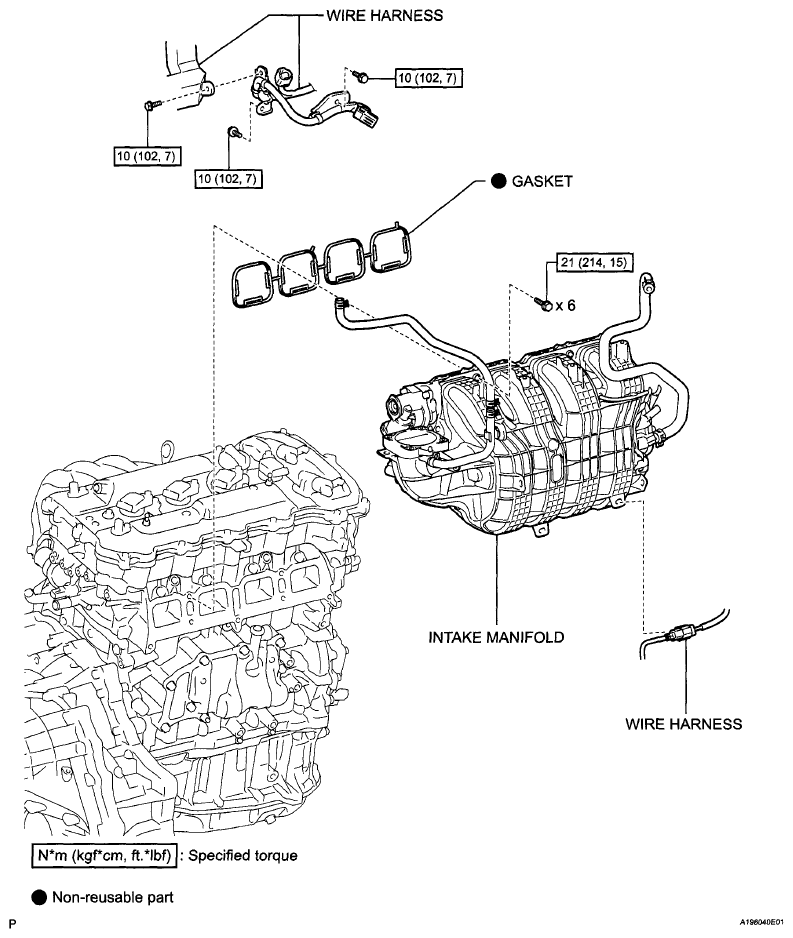

Fig 1: Intake Manifold Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

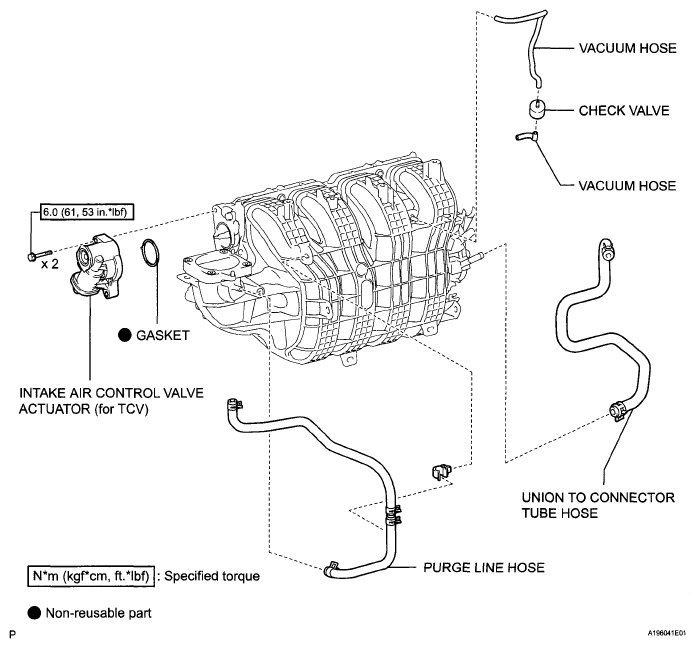

Fig 2: Intake Manifold Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Intake Manifold Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Intake Manifold Replacement Components With Torque Specifications (4 Of 6)

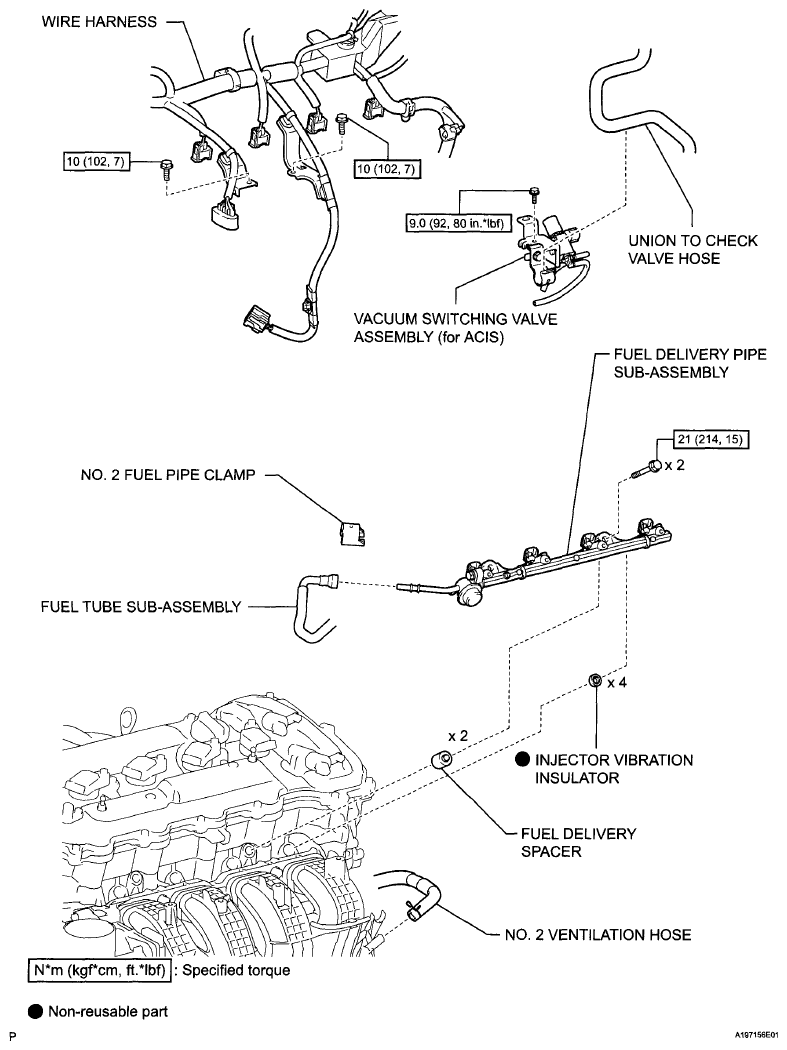

Fig 5: Intake Manifold Replacement Components With Torque Specifications (5 Of 6)

Fig 6: Intake Manifold Replacement Components With Torque Specifications (6 Of 6)
