ACIS Control Circuit: Wiring Diagram

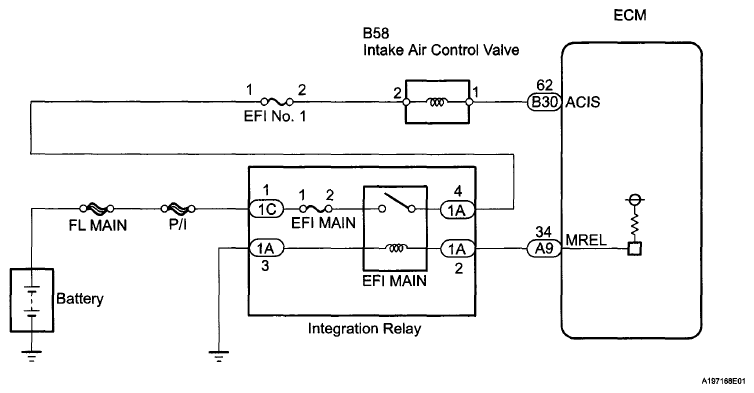

Fig 1: ACIS Control - Wiring Diagram

G05997614

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
