Fuel Pump: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL FUEL PUMP ASSEMBLY
    1. Connect the fuel pump connector.
      Fig 1: Locating Fuel Pump Connector
      G05998587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the fuel pump spacer to the fuel pump assembly.
    3. Apply gasoline to a new O-ring and install the O-ring to the fuel filter.
      Fig 2: Identifying O-Ring And Fuel Pump Spacer
      G05998592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 5 claws to the holes to install the fuel pump.
      Fig 3: Identifying Fuel Pump Assembly Claws
      G05998586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 FUEL SUCTION SUPPORT
    1. Attach the 2 claws to the holes to install the No. 1 fuel suction support.
      Fig 4: Locating No. 1 Fuel Suction Support Claws
      G05998585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 FUEL SUB-TANK
    1. Apply gasoline to a new O-ring and install it to the jet pump.
      Fig 5: Identifying No. 1 Fuel Sub-Tank O-Ring
      G05998595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the jet pump while aligning it with the installation position on the No. 1 fuel sub-tank.
    3. Install the jet pump nozzle.
      Fig 6: Identifying Jet Pump Nozzle
      G05998596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 2 claws to the holes to install the No. 1 fuel sub-tank.
      Fig 7: Attaching Claws To Claw Holes And Installing Fuel Sub-Tank
      G05998582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the wire harness.
      Fig 8: Locating Wire Harness Connector
      G05998578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. for TMC Made:

      Install the springs to the fuel suction plate shafts, and then install them to the No. 1 fuel sub-tank.

      Fig 9: Identifying Spring To Fuel Suction Plate Shaft
      G05998580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. for TMMC Made:

      Install the spring to the fuel suction plate shaft, and then install it to the No. 1 fuel sub-tank.

      Fig 10: Identifying Spring From Shaft
      G05998581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Using needle-nose pliers, install a new E-ring.

      HINT:

      Slightly lower the fuel suction plate to install the E-ring.

      Fig 11: Identifying E-Ring With Needle-Nose Pliers
      G05998579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FUEL SUCTION WITH PUMP ASSEMBLY
    1. Install a new gasket onto the fuel suction plate.
      Fig 12: Identifying Gasket
      G05998577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the fuel hose with the paint mark facing towards the top of the vehicle, and then secure the clip.
    3. Install the fuel suction with pump into the fuel tank.
      NOTE: Do not damage the fuel suction with pump.

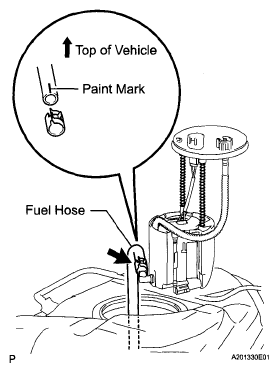

      Fig 13: Connecting Fuel Hose With Paint Mark Facing Towards Top Of Vehicle
      G05998603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FUEL TANK VENT TUBE SET PLATE
    1. Install the set plate and tube clamp with the 8 bolts.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

      Fig 14: Locating Fuel Tank Vent Tube Set Plate With Bolts
      G05998575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Connect the fuel tank main tube with the tube joint clip.
      Fig 15: Connecting Fuel Tank Main Tube With Tube Joint Clip
      G05998605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Check that there are no scratches or foreign objects on the connecting parts.
      • Check that the fuel tube joint is inserted securely.
      • Check that the fuel tube joint clip is on the collar of the fuel tube joint.
      • After installing the tube joint clip, check that the fuel tube joint cannot be pulled off.
      • Be careful not to damage the clip. If the clip is damaged, replace it.
  7. INSTALL FUEL TANK ASSEMBLY
    1. Install the fuel tank assembly (See INSTALLATION  ).

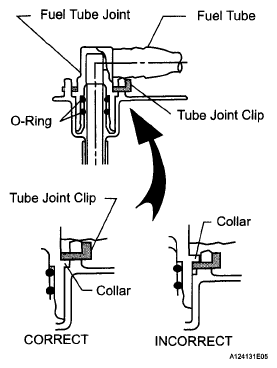

      Fig 16: Identifying Fuel Tube Joint Correct And Incorrect Position
      G05998606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
