System Diagram

The configuration of the electronic control system in the U140F automatic transaxle is as shown in the following chart.

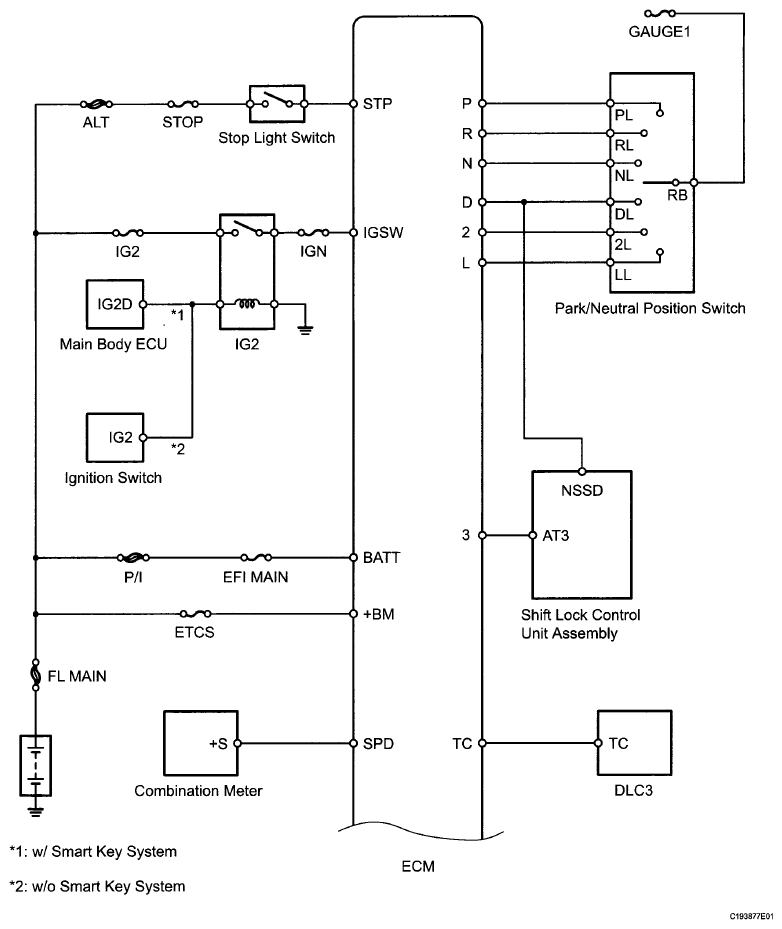

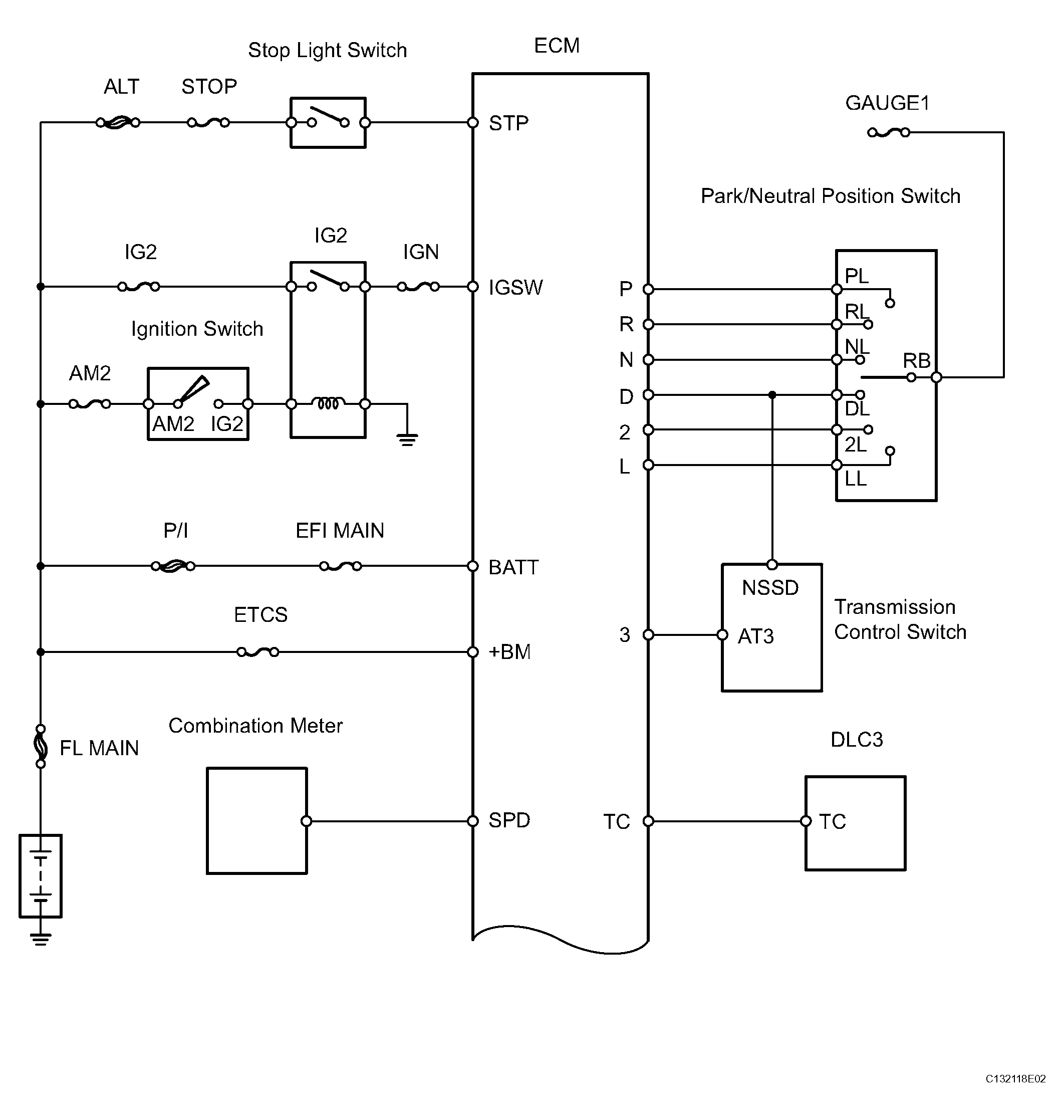

Fig 1: Automatic Transaxle System Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

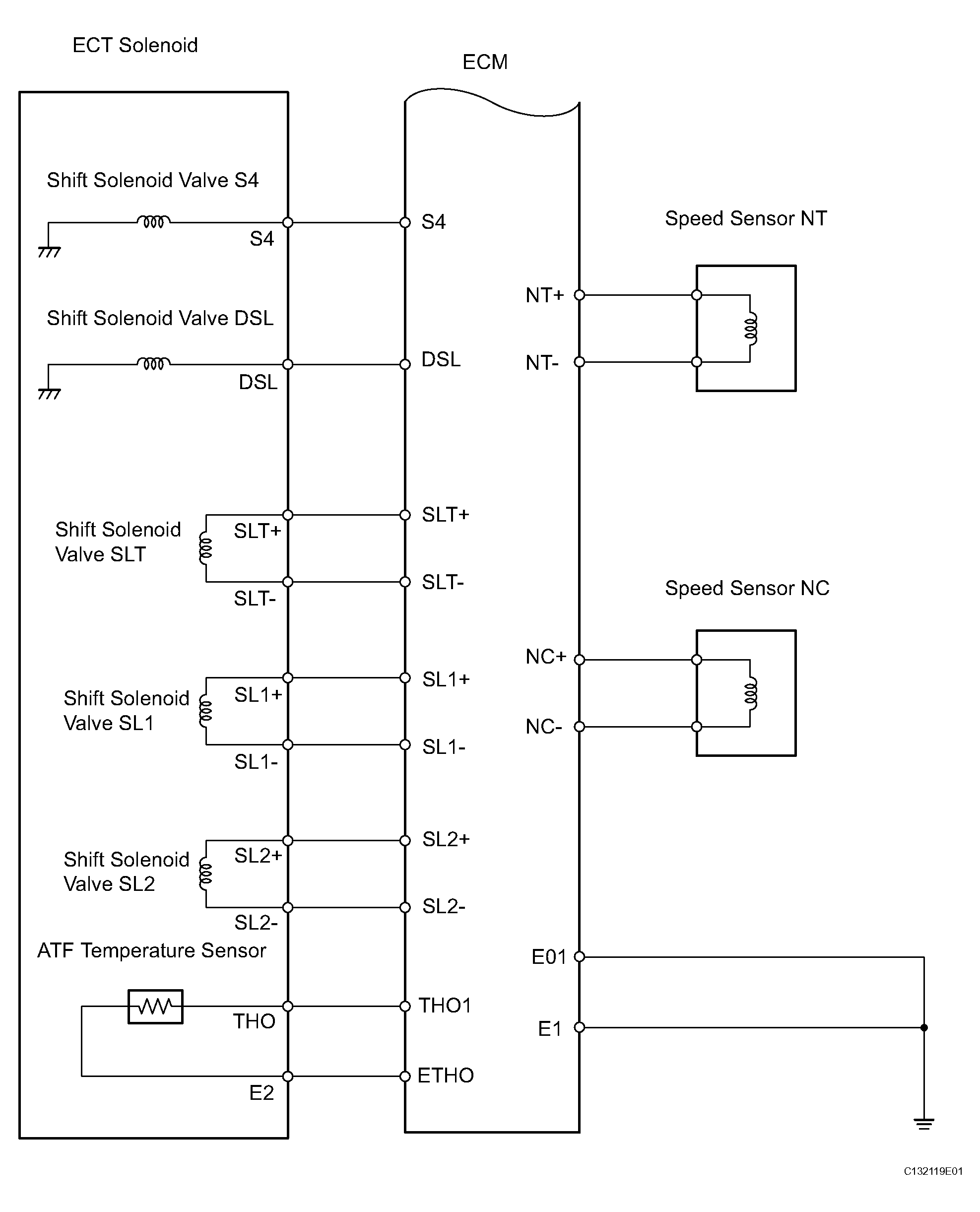

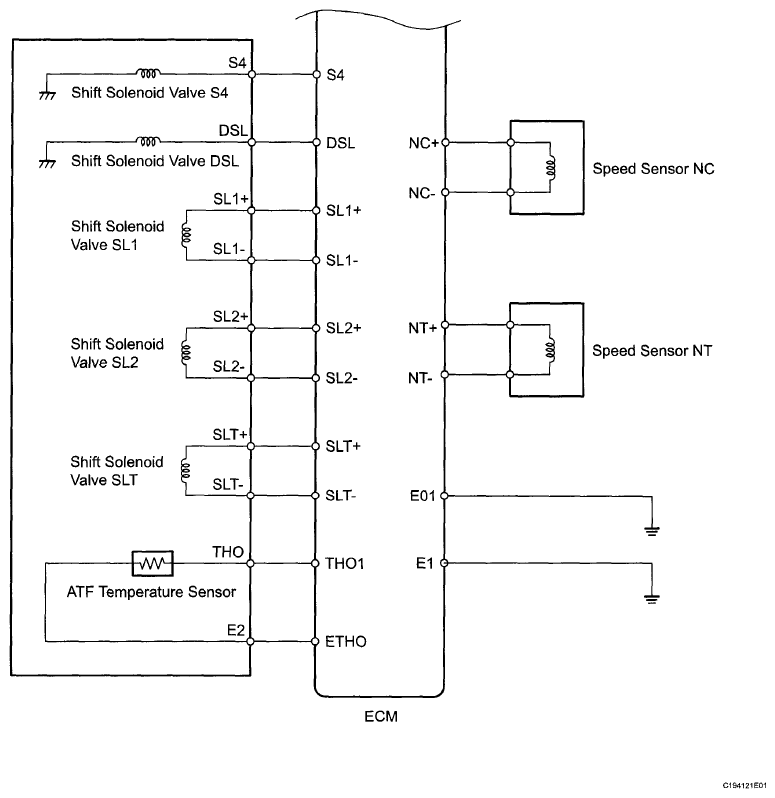

Fig 2: Automatic Transaxle System Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

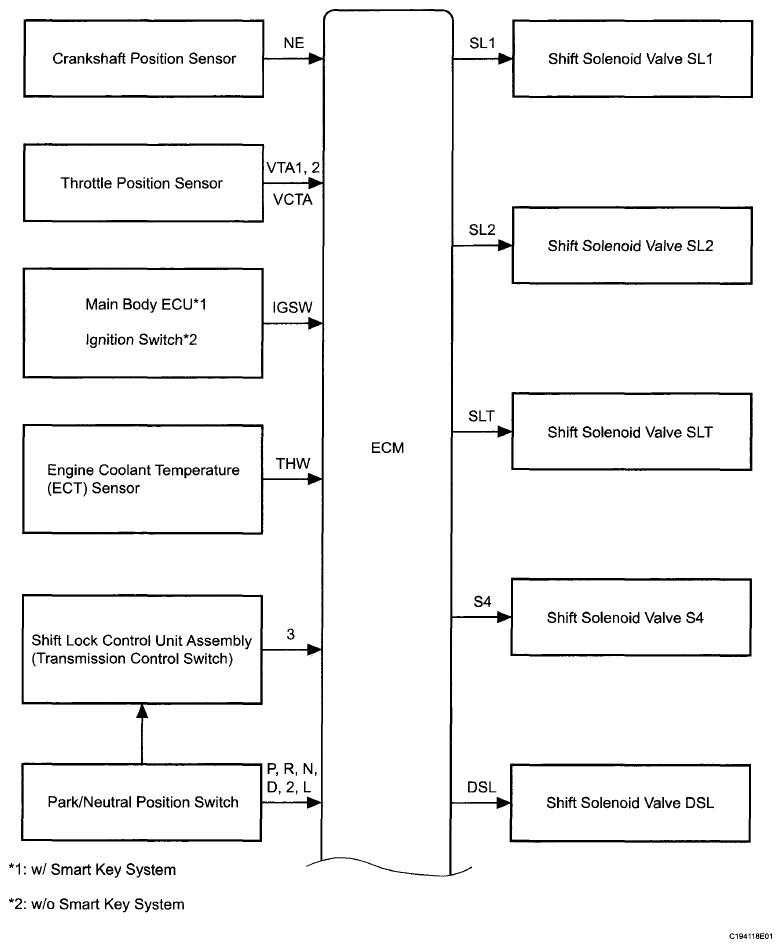

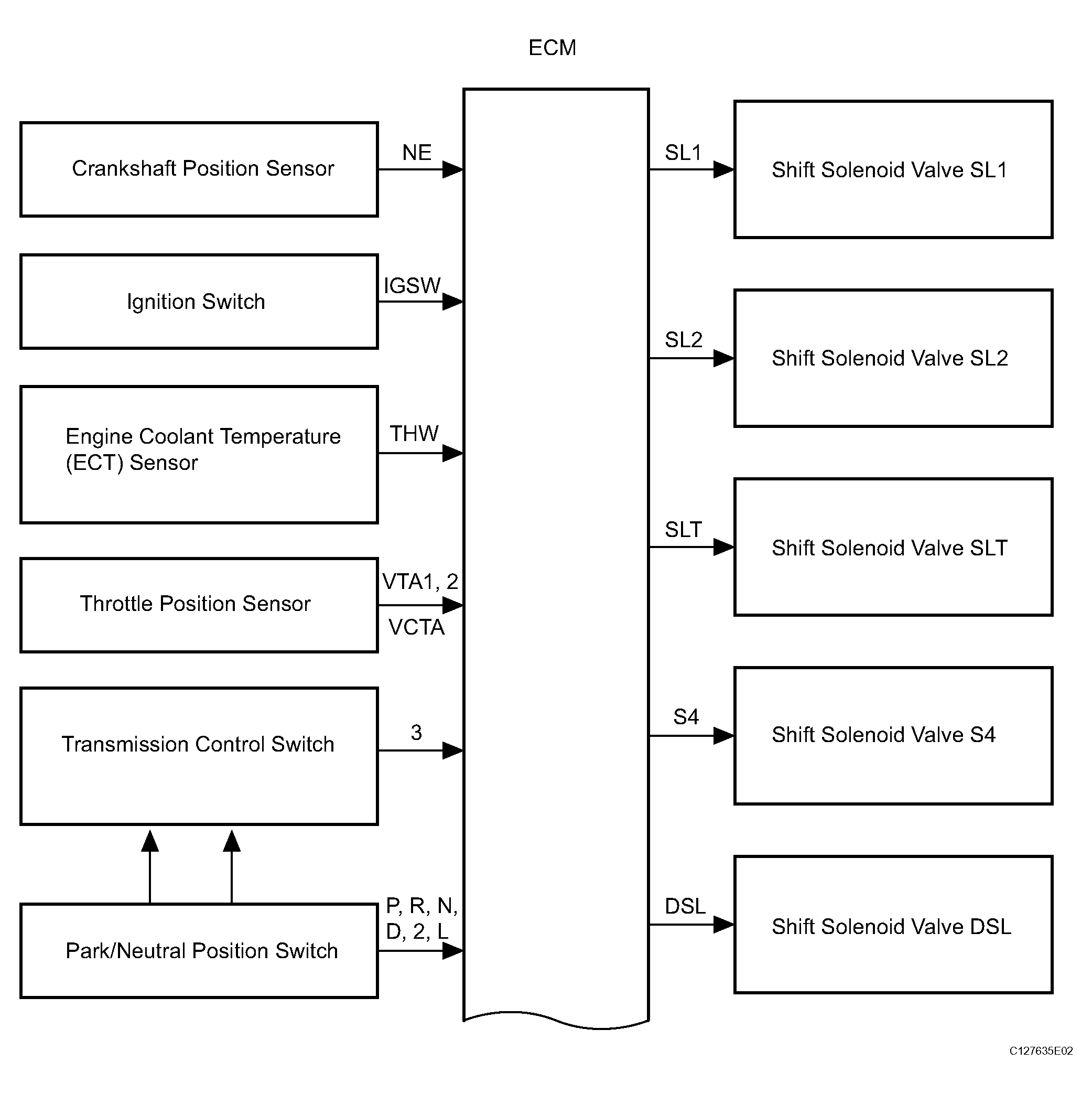

Fig 3: Automatic Transaxle System Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

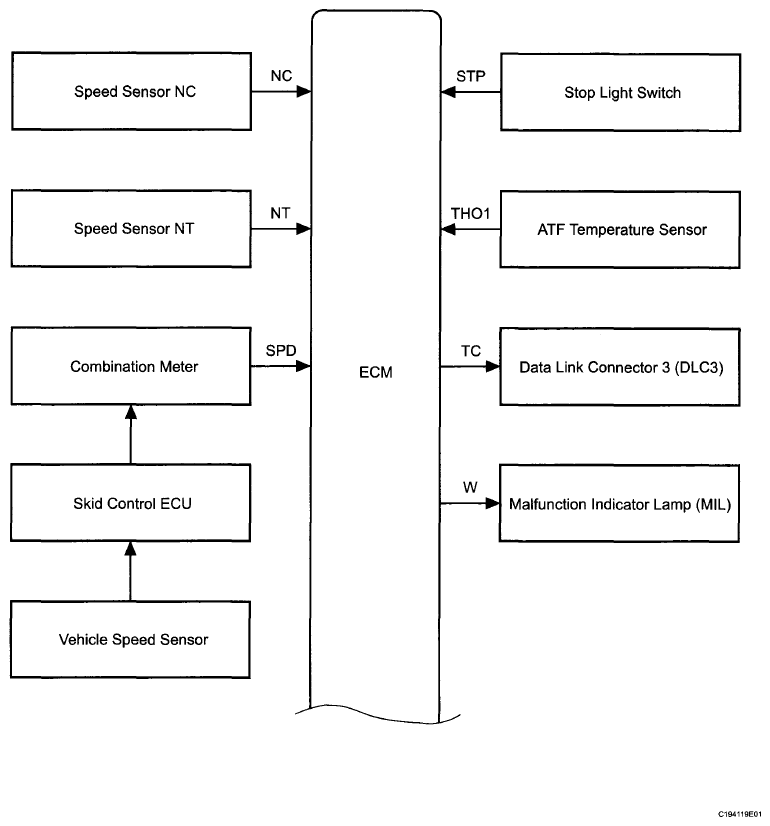

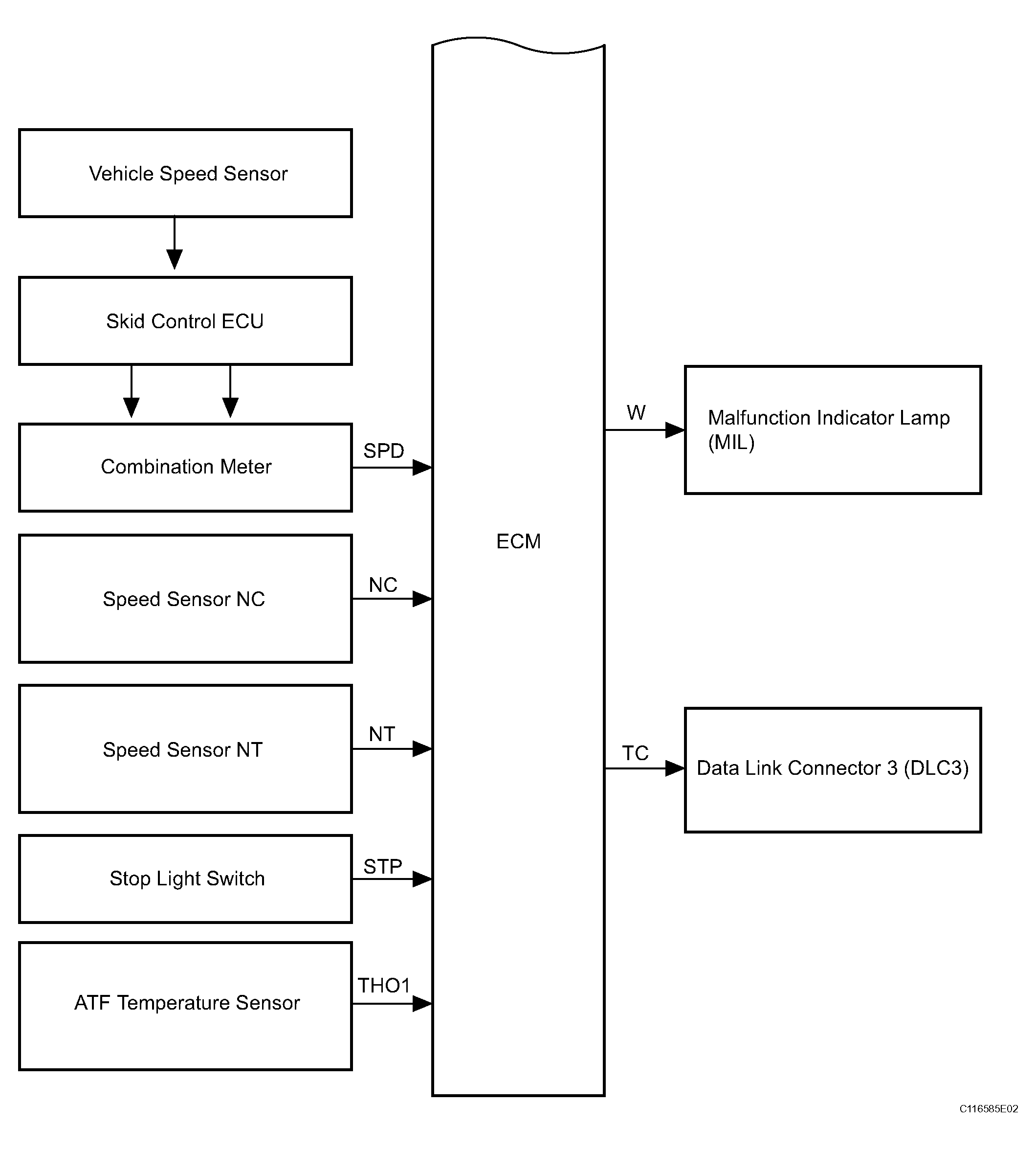

Fig 4: Automatic Transaxle System Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
