Steering Gear: Components

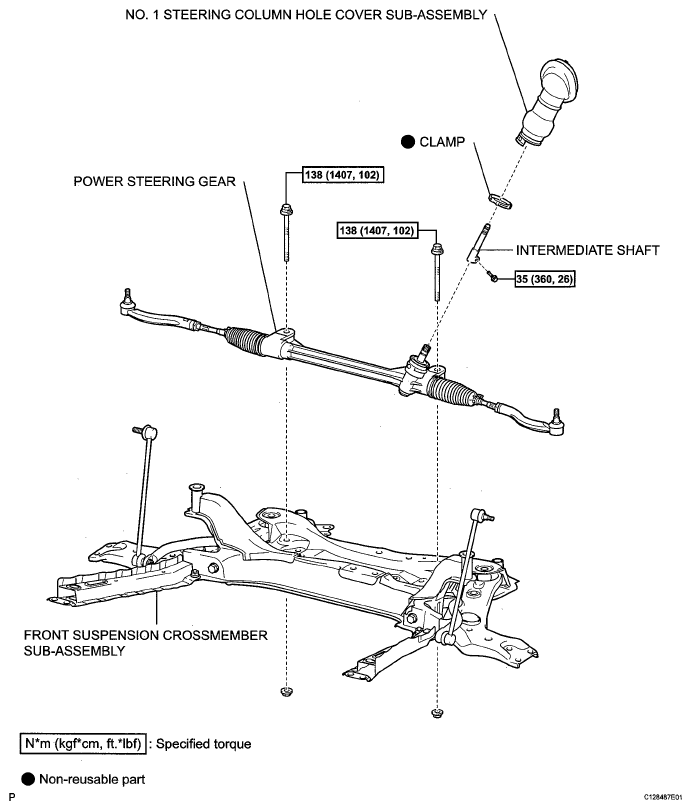

Fig 1: Steering Gear Replacement Components With Torque Specifications (1 Of 3)
G05585156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Steering Gear Replacement Components With Torque Specifications (2 Of 3)
G05585157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Steering Gear Replacement Components With Torque Specifications (3 Of 3)
G05585158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
