Child Restraint Seat Tether Anchor: Installation

INSTALL CHILD RESTRAINT SEAT PROTECTOR

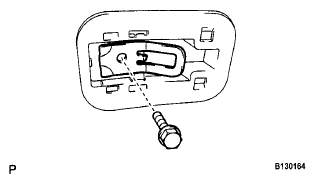

Fig 1: Identifying Child Restraint Seat Tether Anchor Bracket Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
1. Align the claws with the positioning holes, and install the bracket with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
INSTALL ROOF HEADLINING ASSEMBLY
1. Install the roof headlining (see INSTALLATION ).

  Fig 2: Identifying Child Restraint Seat Tether Anchor Bracket With Claws And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER
1. Install the cover with the 4 claws.

  Fig 3: Identifying Child Restraint Seat Tether Anchor Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
