Child Restraint Seat Tether Anchor: Components

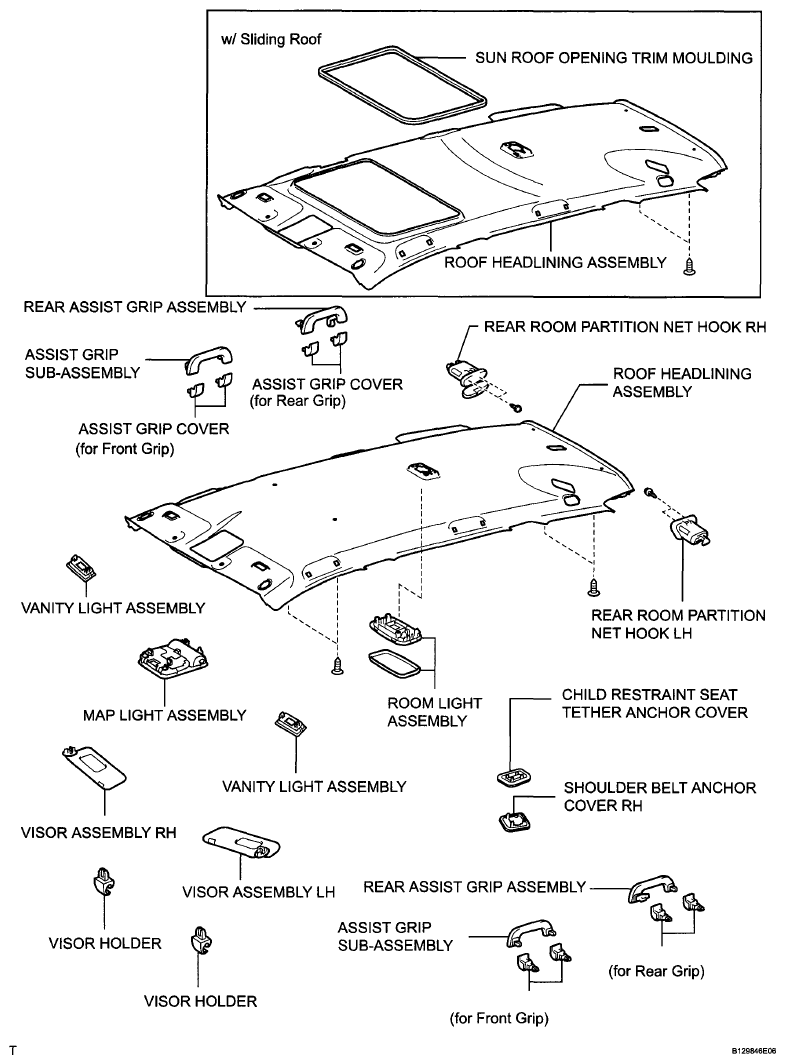

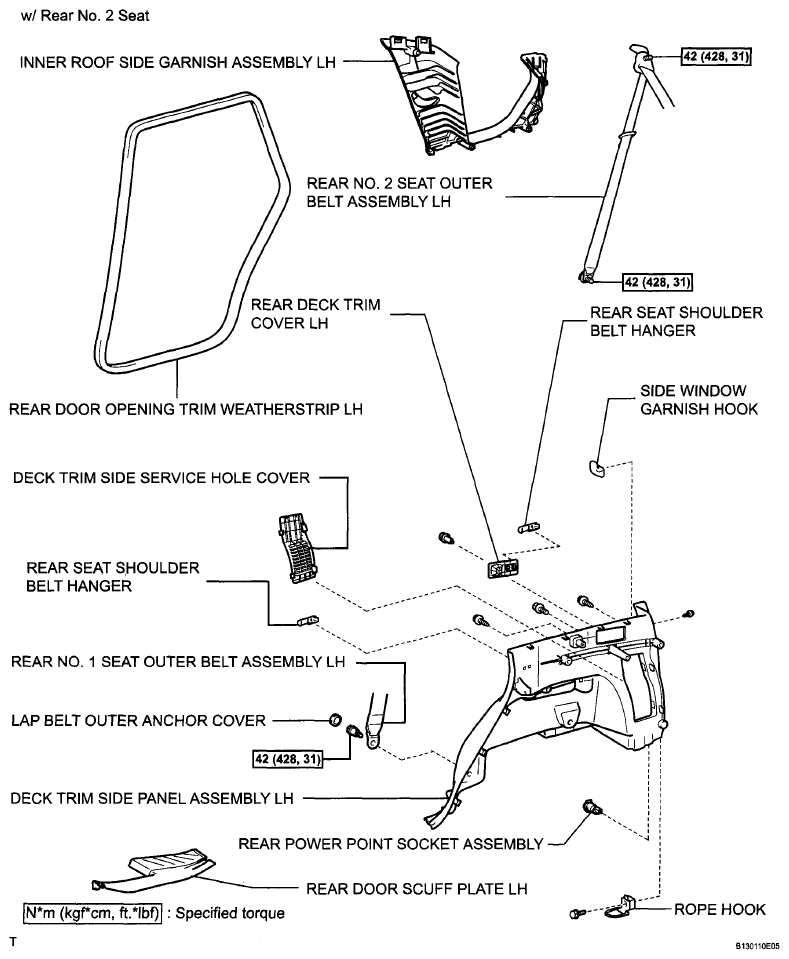

Fig 1: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

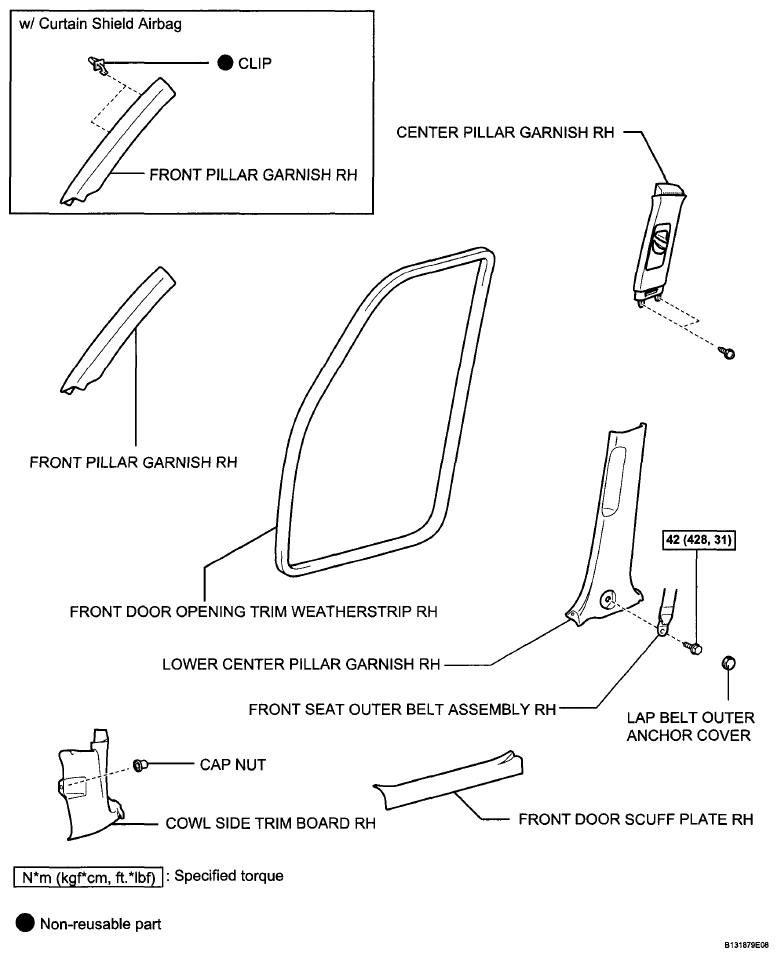

Fig 2: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

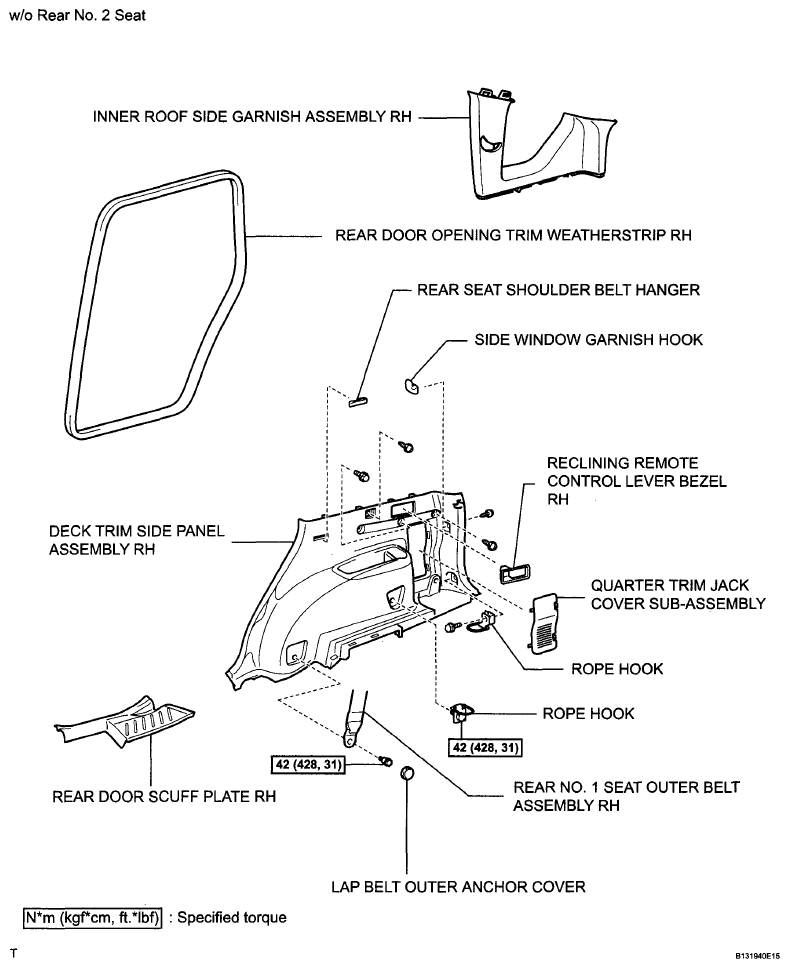

Fig 4: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

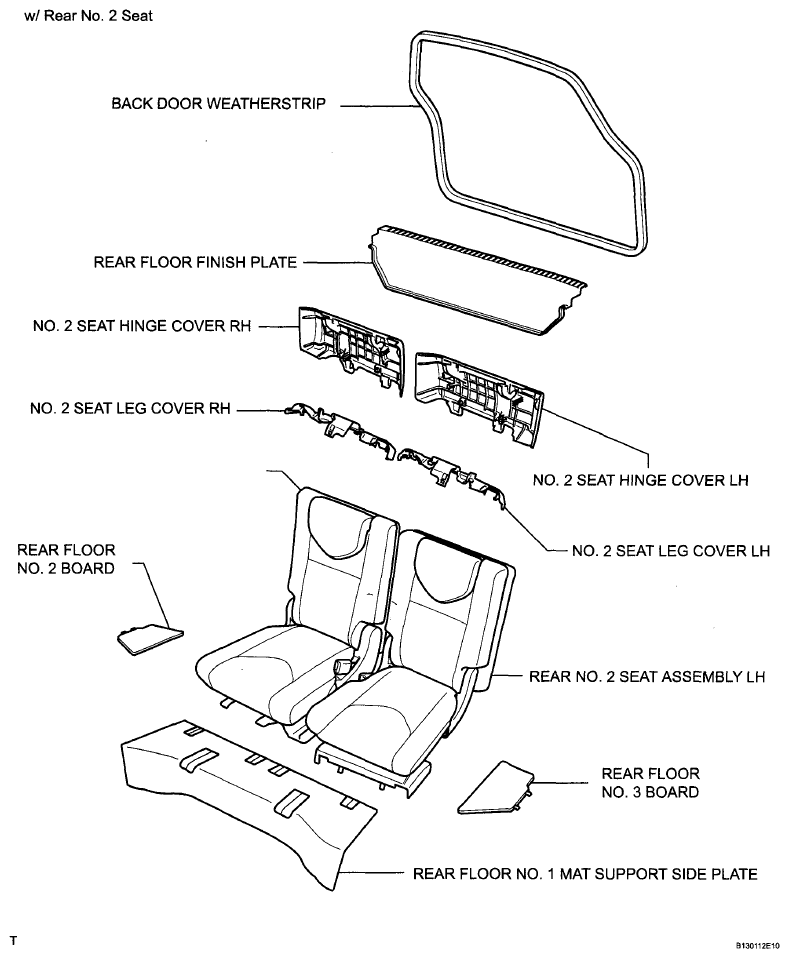

Fig 5: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

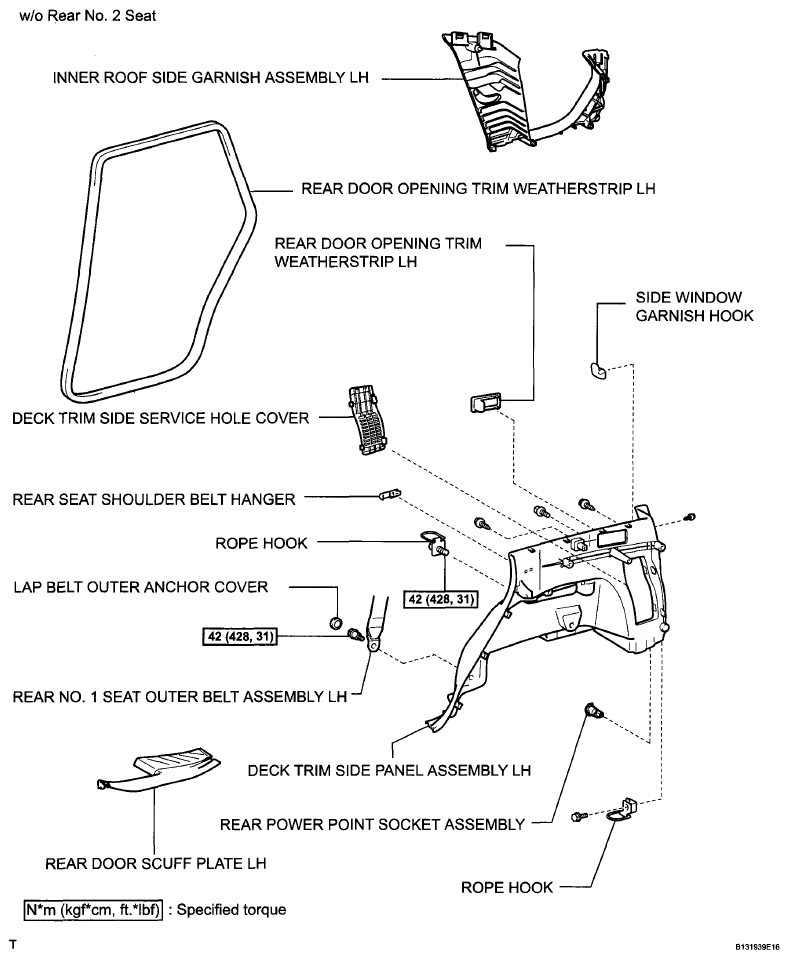

Fig 6: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

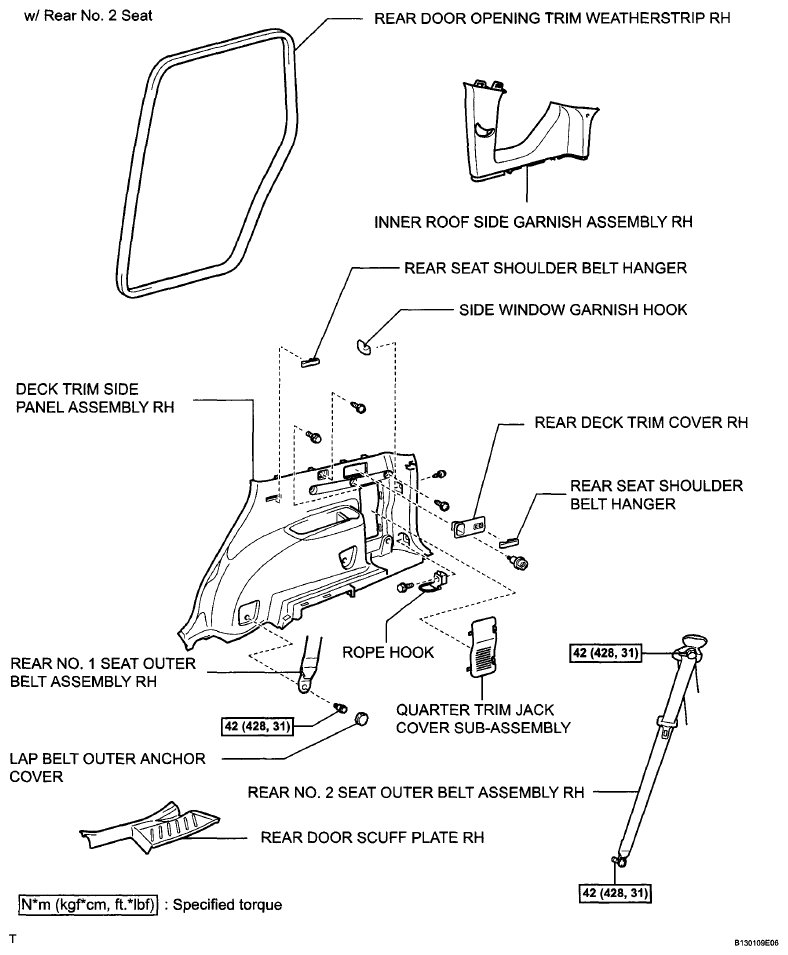

Fig 7: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (8 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (9 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (10 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

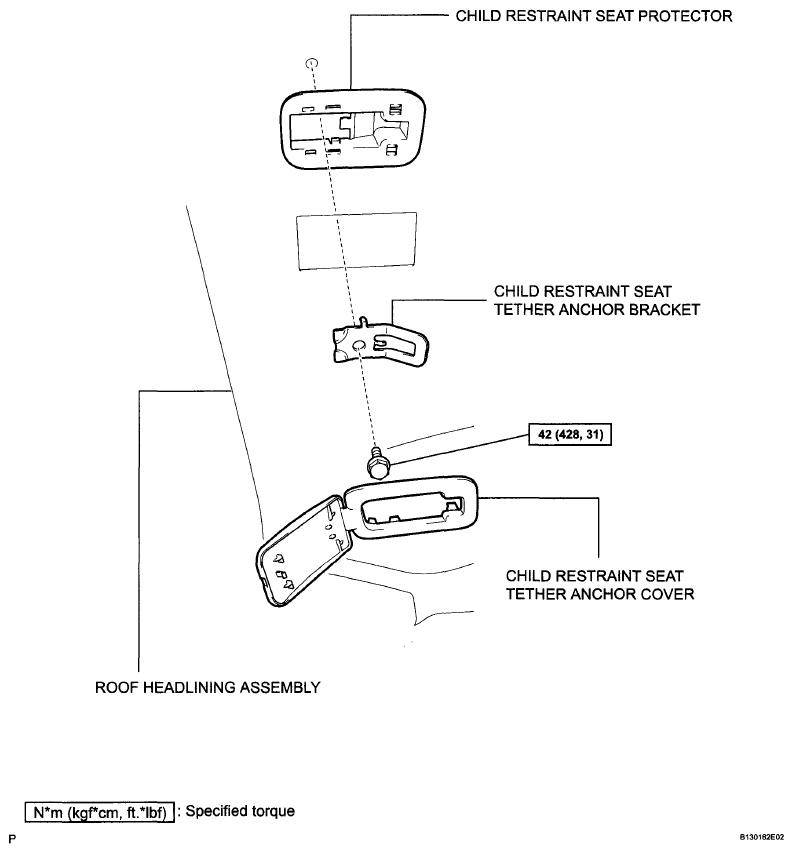

Fig 11: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (11 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
