Refrigerant Line: Components

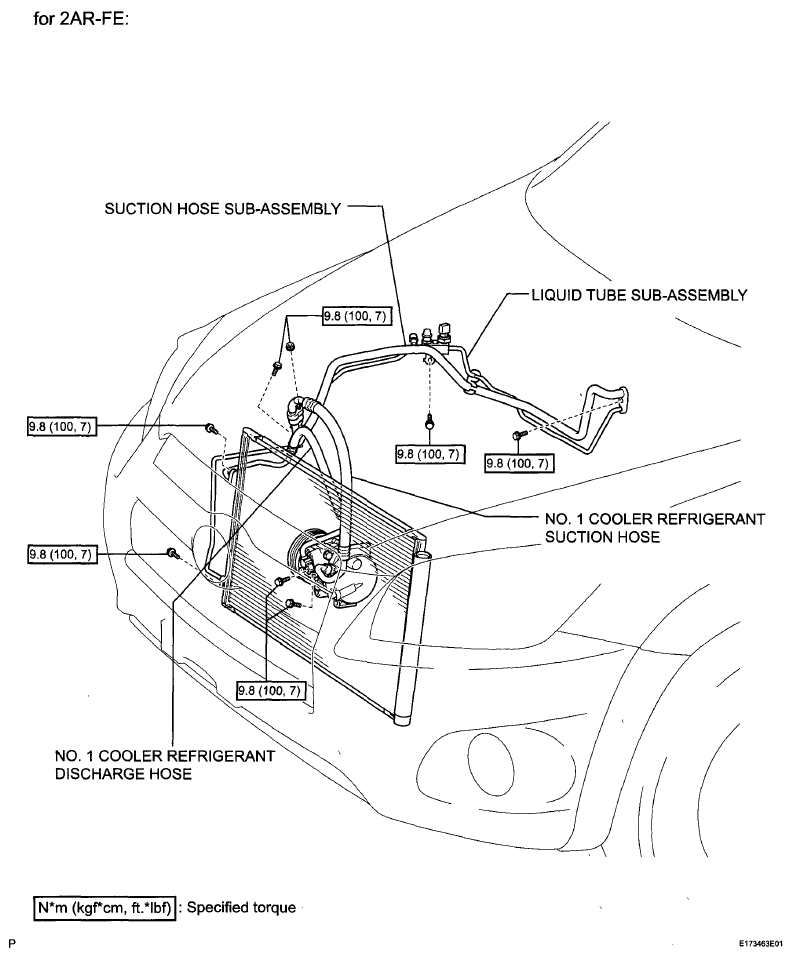

Fig 1: Refrigerant Line Replacement Components With Torque Specifications (2AR-FE)
G06003877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

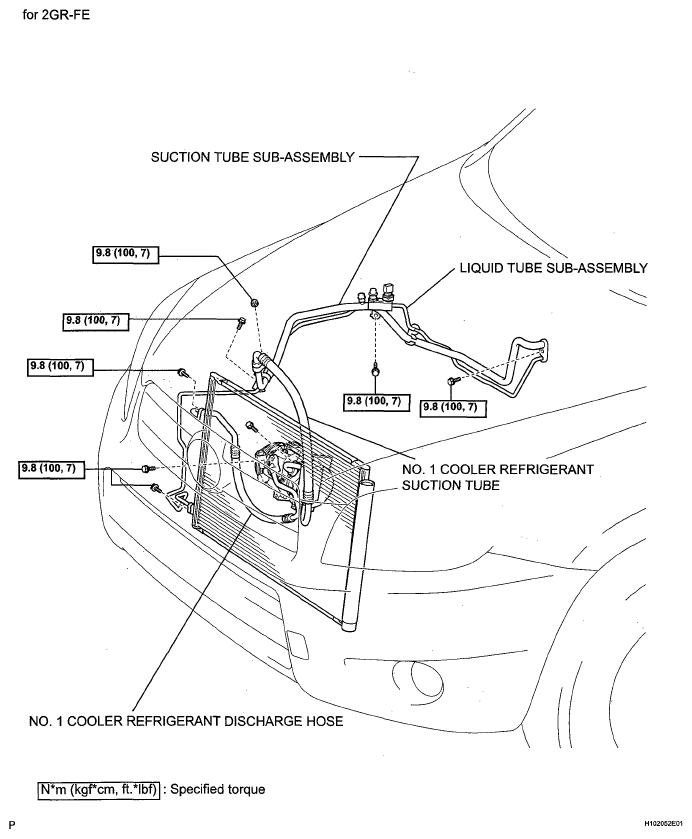

Fig 2: Refrigerant Line Replacement Components With Torque Specifications (2GR-FE)
G05585329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
