Air Conditioning: Condenser: Components

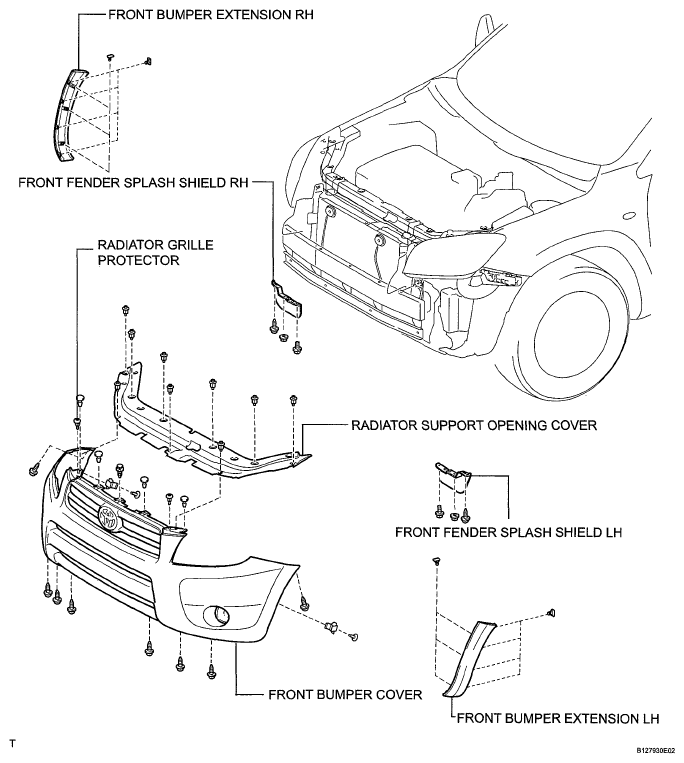

Fig 1: Identifying Front Bumper Components
G05585444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

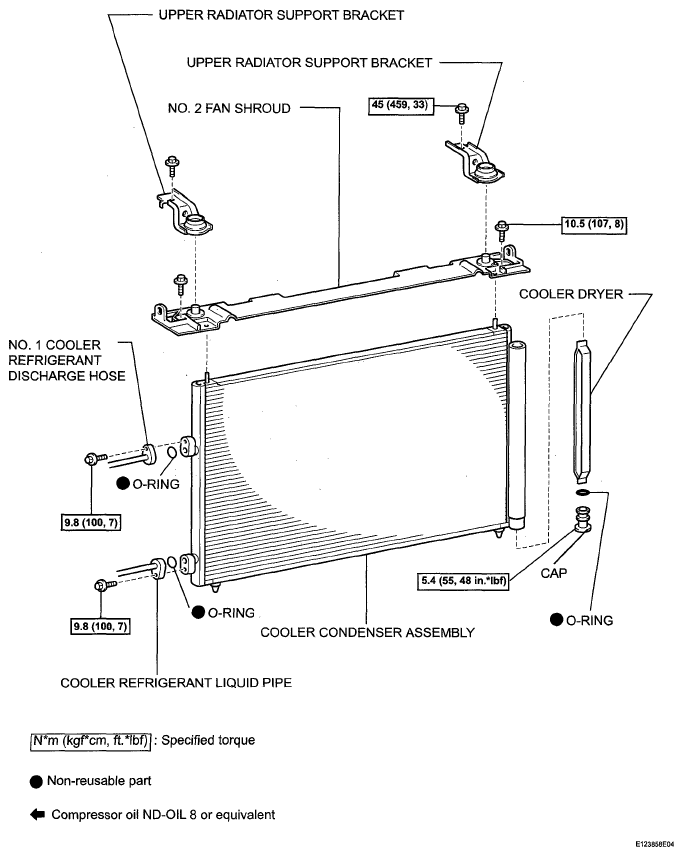

Fig 2: Condenser Replacement Components With Torque Specifications
G05585445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
