Air Inlet Control Servo Motor: Components

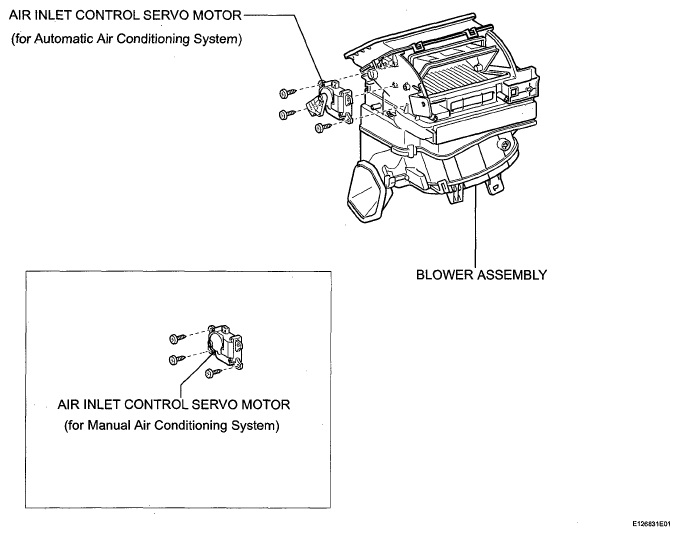

Fig 1: Identifying Air Inlet Control Servo Motor And Blower Assembly

G05585419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
