Section 15 (Engine Control System (2GR-FE) - Component And System Testing, Removal, Inspection & Installation): ECM: Components

WARNING: This page is about a different variant/trim than selected.

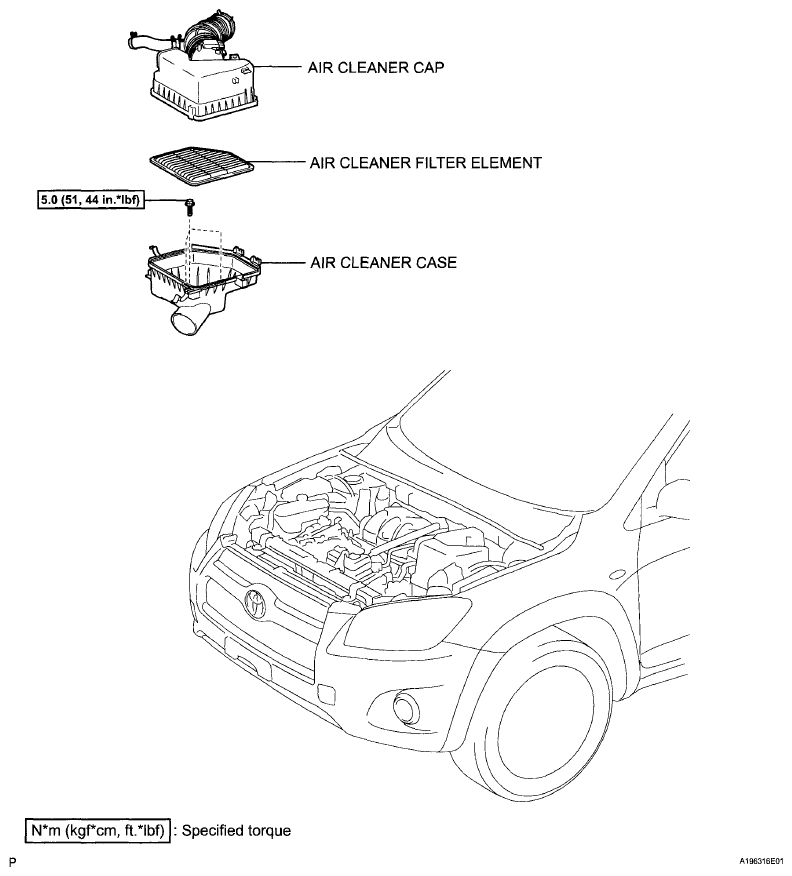

Fig 1: ECM Replacement Components With Torque Specifications (1 Of 2)

G05997638

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

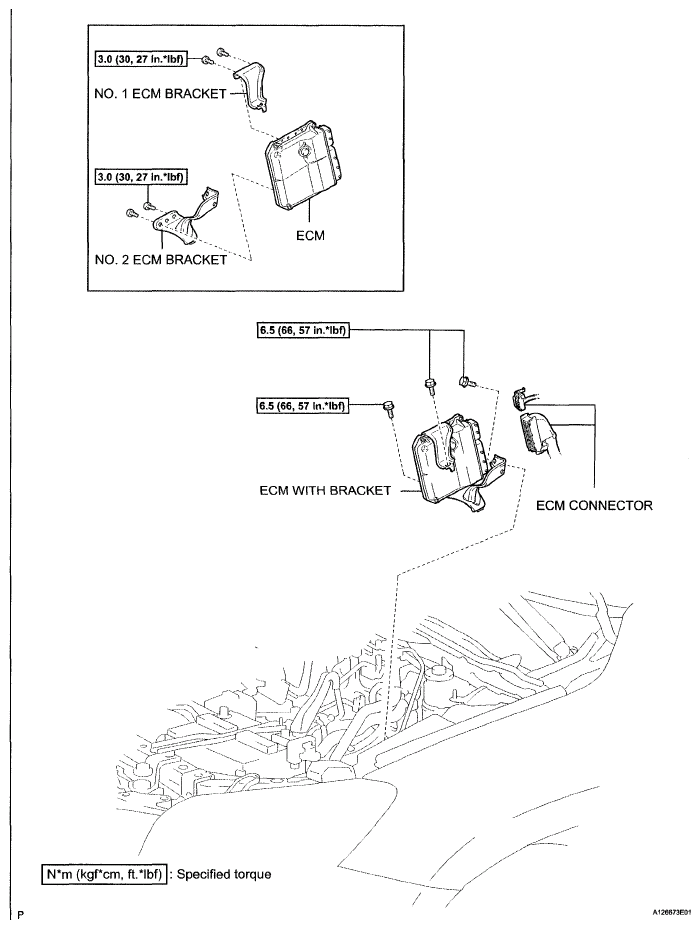

Fig 2: ECM Replacement Components With Torque Specifications (2 Of 2)

G05183861

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
