Fuel Pressure Pulsation Damper: Components

Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 2)
G05998737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

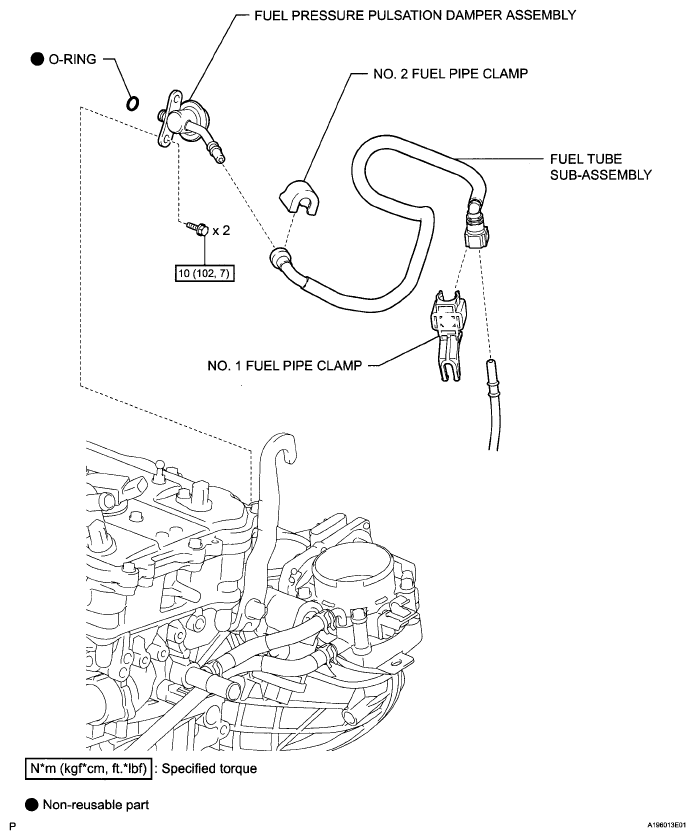

Fig 2: Identifying Fuel Pressure Pulsation Damper Components (2 Of 2)
G05998447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
