Engine Switch Indicator Circuit: Wiring Diagram

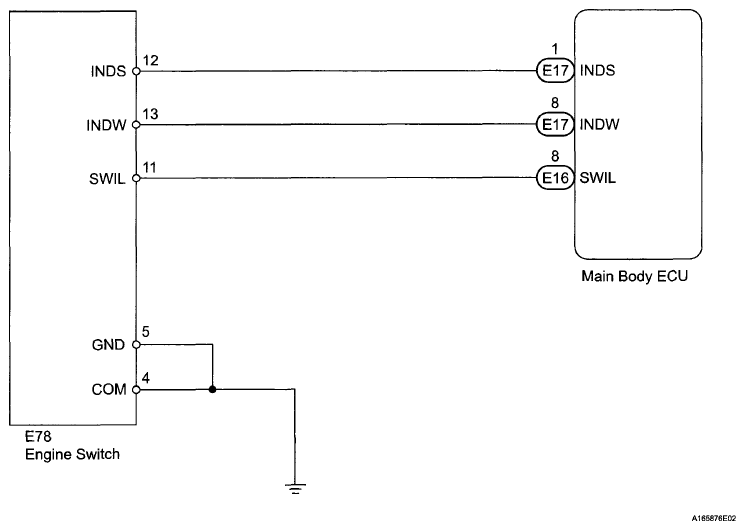

Fig 1: Engine Switch Indicator - Wiring Diagram

G05999212

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
