Inspection Procedure

  1. READ VALUE USING TECHSTREAM (START SWITCH 1 AND 2)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream on.
    3. Enter the following menus: Body Electrical / Main Body / Data List.
    4. Read the value displayed on the Techstream.

      Main Body

      DATA LIST REFERENCE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Start Switch 1 Start Switch 1/ON or OFF ON: Engine switch on (IG)
      OFF: Engine switch off      		 -
      Start Switch 2 Start Switch 2/ON or OFF ON: Engine switch on (IG)
      OFF: Engine switch off      		 -

      OK:

      When the engine switch is turned on (IG), ON appears on the Techstream screen.

      NG: Go to step  3

      OK: Go to next step

  2. CHECK SWITCH CONDITION (ENGINE SWITCH)
    1. Make sure that the electrical key is inside the cabin.
    2. With the shift lever in P, check that the power source mode changes as shown below each tine the engine switch is pushed.

      OK:

      off → on (ACC) → on (IG) → off

      NG: GO TO POWER SOURCE MODE DOES NOT CHANGE  (See )

      OK: USE SIMULATION METHOD TO CHECK  (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )

  3. INSPECT ENGINE SWITCH
    1. Remove the engine switch (See ENGINE SWITCH  ).
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      7 (SS1) - 5 (GND) Pushed Below 1 Ω
      2 (SS2) - 5 (GND) Pushed Below 1 Ω
      7 (SS1) - 5 (GND) Not pushed 10 kΩ or higher
      2 (SS2) - 5 (GND) Not pushed 10 kΩ or higher

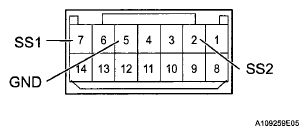

      Fig 1: Identifying Terminals Of Engine Switch Connector
      G05999180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPLACE ENGINE SWITCH

      OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (ENGINE SWITCH - MAIN BODY ECU AND BODY GROUND)
    1. Disconnect the E78 engine switch connector.
    2. Disconnect the E16 main body ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      E78-7 (SS1) - E16-10 (SSW1) Always Below 1 Ω
      E78-2 (SS2) - E16-9 (SSW2) Always Below 1 Ω
      E78-5 (GND) - Body ground Always Below 1 Ω
      E78-7 (SS1) or E16-10 (SSW1) - Body ground Always 10 kΩ or higher
      E78-2 (SS2) or E16-9 (SSW2) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

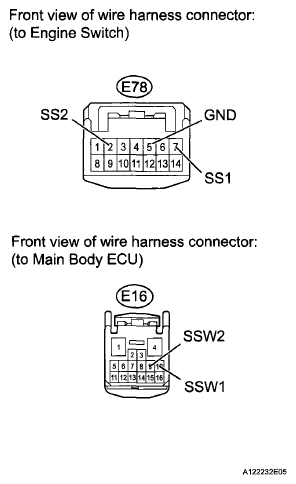

      Fig 2: Identifying Terminals Of E78 Engine Switch Connector
      G05999181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)
